Specifications
Brand Name :
IRONSTAR
Place of Origin :
CHINA
Description

Perforated rolling shutter door roll forming line in Venezuela

Short Description:

Shutter door roll forming machine popular sell in many countries, common shutter door rolling thickness from 0.7-1.2 mm, material use PPGI or Galvanized steel material

We sell lots of such machine to India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabic, Oman etc, Size can customize can your need size

Punching hole shutter door forming line | rolling shutter machine | shutter slat machine | 2 in 1 rolling shutter machine

  • Raw material:Galvanized steel
  • Warranty:3 years
  • Export port:Tianjin port
  • Payment Terms:T/T, L/C, D/A, D/P
  • Container:20 feet container
  • Working days:40 working days

Diameter of punching hole shutter door roll forming machine

NO Type Specification
1 Raw material Type Galvanized steel
Feeding width As customer' drawing
Thickness 0.7-1 mm

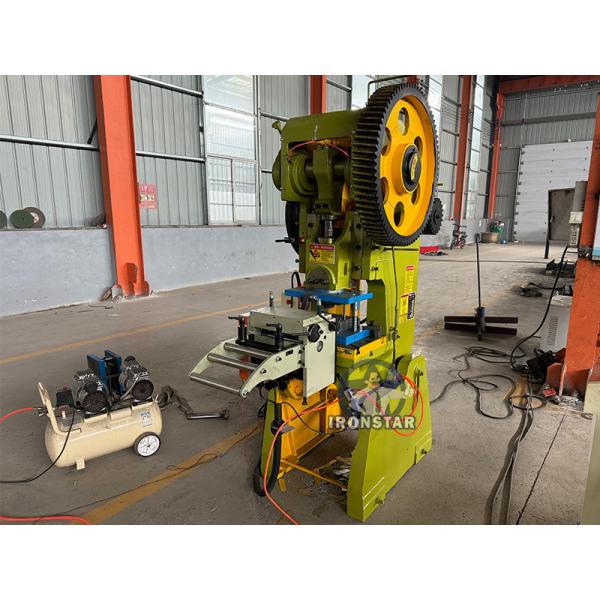

2 Puncher offline Capacity 25 tons, automatic
Size 1.5*1*1.5 m
3 Decoiler Operation Electric, automatic work
Weight apacity 3 Tons
4 Main body Roller station 14 rows
Diameter of shaft 55 mm
Shaft material 45# with 0.05mm chrome
Roller material 45# with 0.05mm chrome
Frame Steel plate welding
Frame thickness 16 mm
Machine size About 4.5*0.8*1 m
Machine weight About 1.5 tons
Machine color As customer need
Operation Hydraulic automatic
Working speed Common speed 8-20 m/min
5 Cutter Hardness 50-65 HRC
Cutting tolerance ± 1mm
Material Cr 12

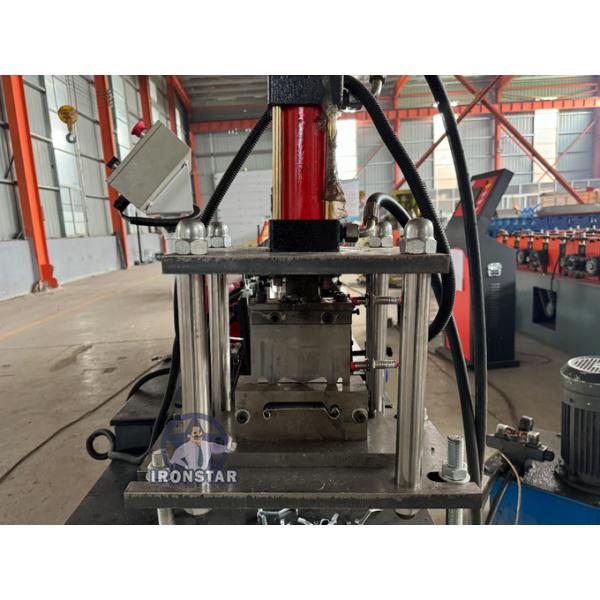

Operate Hydraulic cutting
6 Power Driving way Chain 1 inch
Main motor 4 KW
Pump motor for cutter 3 KW
Voltage 380V/50HZ, 3 phase or as customer' request
7 Control box Electric box PLC control system, inventer
Screen Touchable screen
PLC brand Delta made in Taiwan
Inverter brand Delta made in Taiwan or SAJ
Language Chinese and English or as customer' request
8 Stacker Operation Manual
Length 2-3 m

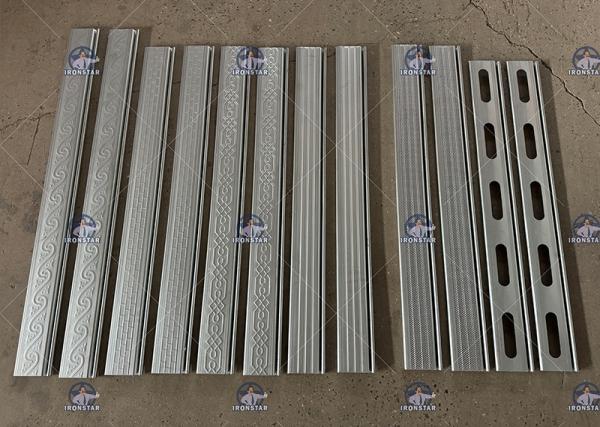

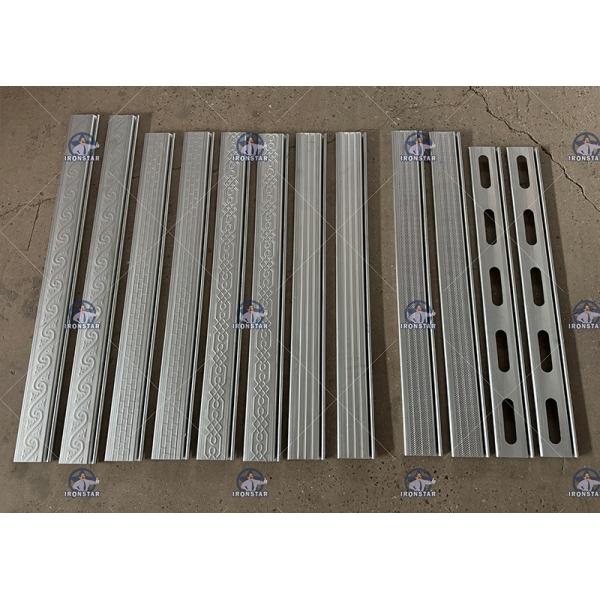

Product show - 3 kinds flower shutter + 2 kinds punching hole shutter

Perforated rolling shutter door roll forming line in Venezuela

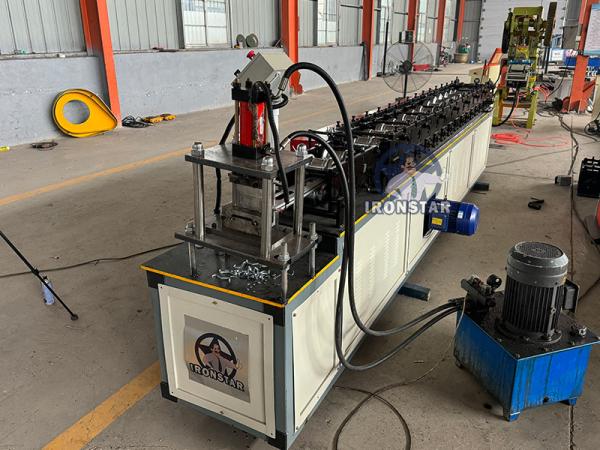

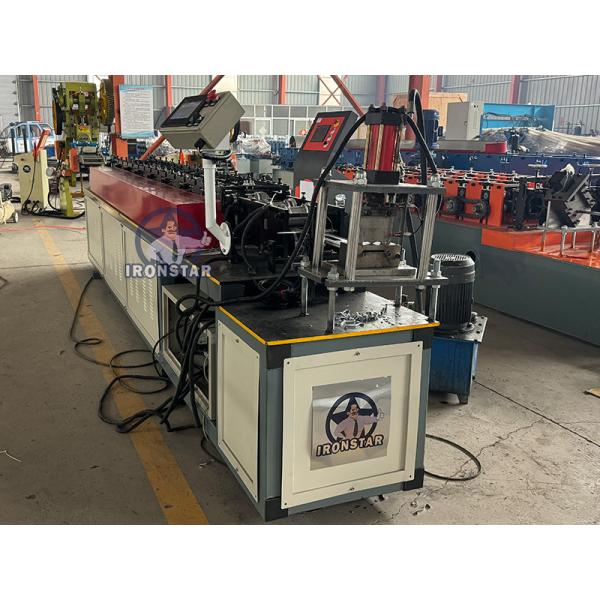

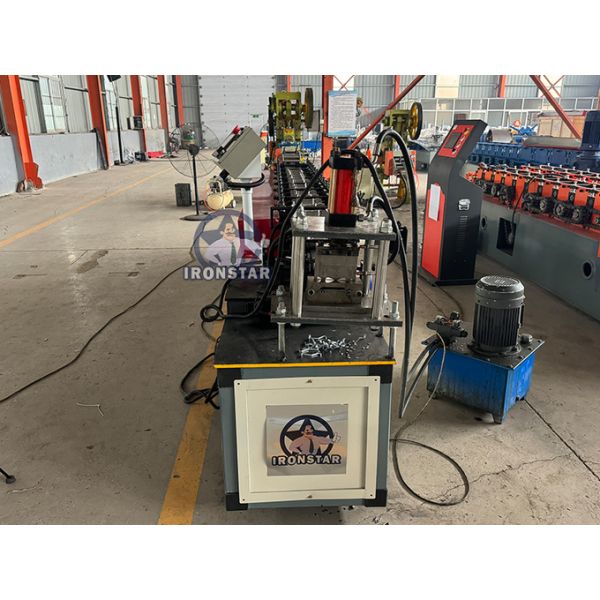

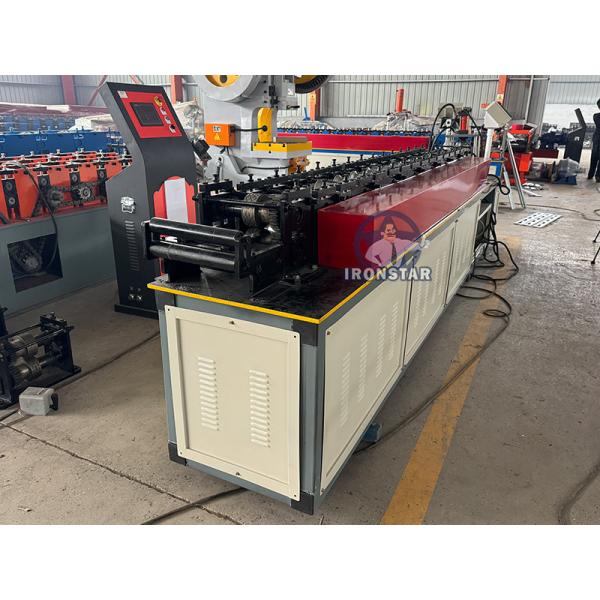

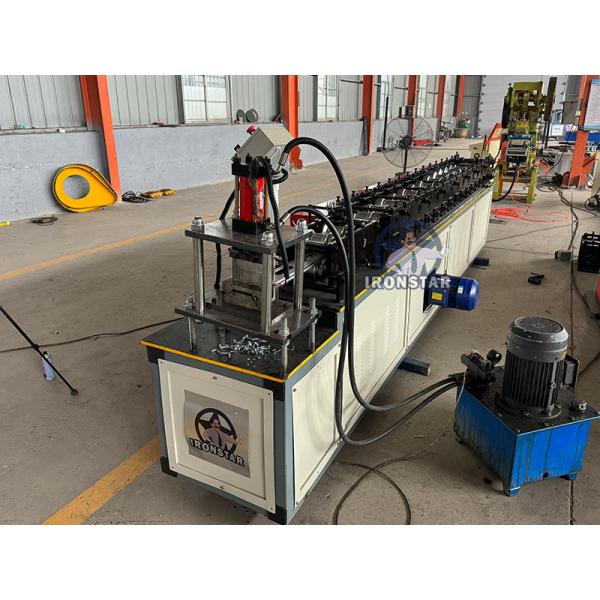

Roll forming machine

Perforated rolling shutter door roll forming line in Venezuela

Perforated rolling shutter door roll forming line in Venezuela

Perforated rolling shutter door roll forming line in Venezuela

Perforated rolling shutter door roll forming line in Venezuela

Perforated rolling shutter door roll forming line in Venezuela

Perforated rolling shutter door roll forming line in Venezuela

Packing & Payment & Service

1). Packing method: Nude, seller should guarantee equipment will be moisture-proof, anti corrosive, and will not be damaged during transportation.

2). Payment Term: 30% of total contract value paid by T/T, last 70% paid by T/T after inspection by buyer in seller’s factory while before delivery.

3). Delivery Time: The seller guarantees the equipment will be ready for shipment within 40 working days after receipt of deposit from the buyer.

4). Service: We could send technician to your country to fix the machine if you need. The buyer need to pay for all the cost, including: visa, round trip tickets, accommodation, salary of USD 120 per day.

5). Warranty: 36 months During warranty, the replaceable parts are free, but the buyers need to pay for the shipping fee.

6). Package: One complete equipment needs a 20 feet container to hold.
