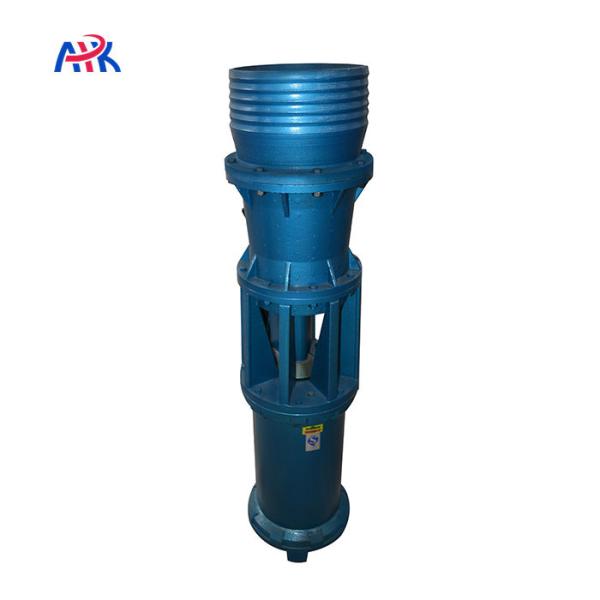

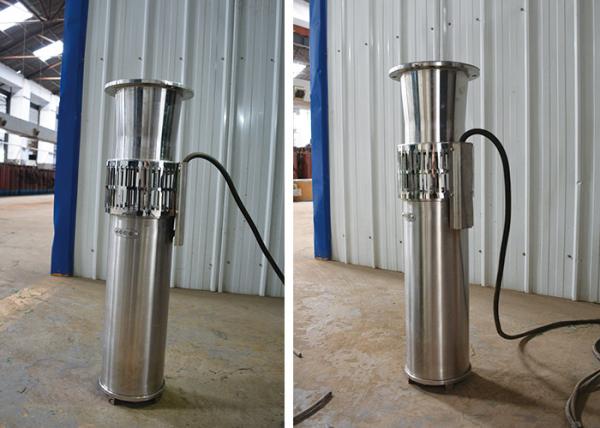

High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump
Specifications
Brand Name :
APK
Model Number :
Axial Flow Submersible Pump
Certification :
ISO;CE,BV; TUV; CCC
Place of Origin :
China
MOQ :
1 set
Price :
Please contact us as below
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
1100 sets per month
Delivery Time :
Within 10-15 working days
Packaging Details :
Submersible axial flow pump is packed by wooden case.
Capacity :
800m3/h 1100m3/h 1800m3/h Submersible Pump
Head :
3m 4m 5m 6m 10m submersible pump
Power :
22kw 30kw 37kw 45kw submersible pump
Outlet Size :
200mm 250mm 350mm 400mm 500mm 550mm 650mm
Material :
Cast iron/SS304/SS316/SS316L
Install :
Horizontal or Vertical submersible pump
Description

QSZ submersible axial flow pump applications:

  1. Farmland irrigation
  2. Spray irrigation
  3. Water supply for industrial or residential buildings
  4. Water distribution in mountain areas
  5. Low-lying areas and dunes
  6. Water supply and drainage for mines in urban or rural districts
  7. Flood protection and drainage
  8. Sewage water treatment

QSZ submersible axial flow pump features:

  1. Axial/ Mixed Flow Submersible Pump various installation methods–horizontal, vertical, tilting.
  2. Pump and motor share the same shaft,improving rotor concentricity, less damage to shaft when pump working.
  3. The impeller angle is adjustable, highly improve the flow adjusted range.
  4. The motor is sealed three times, ensuring that there is no water leakage.

QSZ submersible axial flow pump overview:

High Capacity 800m3/h 1100m3/h 1800m3/h Submersible Axial Flow Water Pump

QSZ submersible axial flow pump models:

Discharge Dia Model Flow range Head range Power
mm QSZ type m3/h m kw
200 QSZ300-6-10 300 6 10
250 QSZ500-5-13 500 5 13
350 QSZ800-3-13 800 3 13
400 QSZ1000-3-18.5 1000 3 18.5
350 QSZ1100-10-45 1100 10 45
500 QSZ1500-4-22 1500 4 22
500 QSZ1250-5-30 1250 5 30
550 QSZ1600-4-30 600 4 30
550 QSZ2100-3-30 2100 3 30
550 QSZ1600-5-37 1600 5 37
550 QSZ2000-4-37 2000 4 37
650 QSZ2500-3-37 2500 3 37
550 QSZ1900-5-45 1900 5 45
650 QSZ2400-4-45 2400 4 45
750 QSZ3000-3-45 3000 3 45
500 QSZ1800-10-75 1800 10 75

QSZ submersible axial flow pump working conditions:

  1. Three-phase power source, voltage 380V (deviation no more than 5%), frequency 50Hz (deviation no more than 1%).

  2. Pump motor must be filled with clear water.

  3. The temperature of the water being pumped shall not be more than 40°C.

  4. PH value of the water being pumped shall be 5.5~8.5
