SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate
SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate
SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate
SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate
SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate
SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate
Specifications
Brand Name :
APK
Model Number :
QJH
Certification :
ISO;CE,BV; TUV; CCC
Place of Origin :
Henan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
9863 sets per month
Delivery Time :
Within 2-5 working days upon receipt of payment
Packaging Details :
Seawater submersible pump is packed by wooden case or as your request.
Flow Rate :
5-2000m3/h
Head :
5-600m
Well Diameter :
175mm-600mm
Power: :
7.5-410kw
Voltage :
380v-1140v
Pump Seal :
Machinery Seal Pump
Material :
SS304/SS316/SS316L or Customized
Liquid PH :
1-12
Description

Flow 5-2000m3h 380v to 1140v Stainless Steel Deep Well Seawater Submersible Pump

1. Operation parameters of Stainless Steel SeaWater Submersible Pump:

(1). Flow range: 5-2000 m3/h

(2). Lift range: 10-600m

(3). Applicable well diameter: φ175-φ600mm

(4). Well diameter: 7" 8" 10" 12" 14" 16" 18" or Customized

(5). Anti-corrosion

(6). Fine apperance, smooth

(7). More clearer for water supply

(8). More longer use life

2. Materials of Stainless Steel SeaWater Submersible Pump:

(1). Non-corrosive medium: cast iron HT200

(2). Mildly or moderately corrosive: stainless steel 304

(3). Strongly corrosive: stainless steel 316 or stainless steel 316L

3. Applications of Stainless Steel SeaWater Submersible Pump:

Corrosion resistant seawater submersible pumps are suitable for offshore platform fire-fighting, aquaculture, seawater desalinization, seawater lifting, coastal square fountain, mariculture and attemperation as ground source heat pump in coastal area.

4. Medium Range of Stainless Steel SeaWater Submersible Pump:
(1). All kinds of seawater, alkaline corrosive water, clean water, cold water, rainwater, gushing water of mining, drinking water, etc.
(2). Normal Water temperature range: +5ºC--+35ºC. High Temperature: 120ºC
(3). Solid content (mass ratio): ≤0.01%
(4). PH value: 1-12

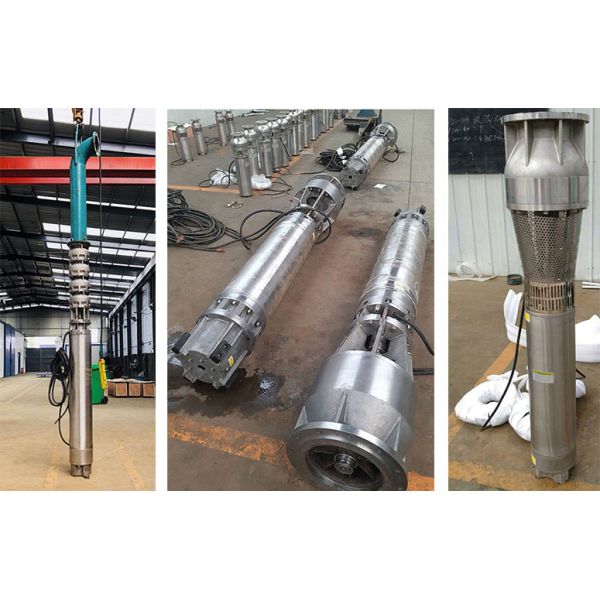

Seawater submersible pump overview:

SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate

SS Material Deep Well Submersible Seawater Pumps with 5-2000m3/h Flow Rate

Seawater submersible pump parameters:

Model Motor Power Flow range Meter range Outlet size Rated current
QJ Series (kW) HP m3/h (m) Inch (") A
175QJH10-121/9 7.5 10 9/11 96-140 1.2" 18.4
175QJH10-135/10 9.2 13 9/11 130-140 1.2" 22.1
175QJH10-150/11 9.2 13 9/11 144-146 1.2" 22.1
175QJH10-165/12 11 15 9/11 158-172 1.2" 26.1
175QJH10-180/13 11 15 9/11 173-187 1.2" 26.1
175QJH10-195/14 13 18 9/11 187-203 1.2" 30.1
175QJH20-143/11 15 20 18-22 120-165 2" 49.7
200QJH15-81/6 7.5 10 13-17 68-92 3" 18
200QJH20-93/7 10 14 18-22 79-107 2" 24.7
200QJH20-108/8 13 18 18-22 92-125 2" 29.7
200QJH20-121/9 13 18 18-22 103-140 2" 29.7
200QJH20-135/10 15 20 18-22 115-156 2" 33.9
200QJH25-182/13 22 30 23-27 150-210 2" 48.2
200QJH32-160/10 25 34 29-35 136-184 3" 54.5
200QJH40-182/14 37 50 37-43 154-214 3" 79.7
200QJH50-105/7 25 34 46-54 84-126 3" 54.5
200QJH50-117/9 25 34 46-54 94-140 3" 54.5
200QJH50-120/8 30 41 46-54 96-144 3" 65.4
200QJH50-143/11 37 50 46-54 121-165 3" 79.7
200QJH100-30/2 15 20 80-120 26-32 4" 33.9
250QJH50-200/10 45 61 46-54 170-230 3" 94.1
250QJH50-240/12 55 75 46-54 204-276 3" 127.9
250QJH50-280/14 63 86 46-54 268-322 3" 152.3
250QJH63-100/5 30 41 58-68 75-100 3" 64.2
250QJH63-200/10 55 75 58-68 170-230 3" 114.3
250QJH63-220/11 63 86 58-68 180-253 3" 127.9
250QJH63-260/13 75 102 58-68 220-299 3" 152.3
250QJH63-300/15 90 122 58-68 205-343 3" 182.8
250QJH140-60/4 37 50 130-150 52-69 5" 77.8
250QJH160-30/2 22 30 148-172 25-35 5" 47.9
250QJH160-45/3 30 41 148-172 38-51 5" 64.2
250QJH160-60/4 45 61 148-172 52-69 5" 94.1
250QJH160-75/5 55 75 148-172 65-86 5" 114.3
300QJH200-100/5 90 122 186-214 85-115 6" 183.8
300QJH200-120/6 110 150 186-214 100-138 6" 222.1
300QJH240-22/1 22 30 223-257 18-25 6" 249.5
300QJH240-44/2 45 61 223-257 37-51 6" 47.3
300QJH240-66/3 75 102 223-257 56-76 6" 95.4
300QJH240-88/4 100 136 223-257 75-101 6" 154.1
300QJH400-40/1 75 102 368-432 38-42 8" 152.3
300QJH400-80/2 160 218 368-432 76-84 8" 284.4
300QJH400-120/3 220 299 368-432 117-123 8" 439.2
300QJH500-60/4 140 190 460-540 57-63 8" 249.5
300QJH500-75/5 180 245 460-540 72-78 8" 317.5

If these seawater submersible pump parameters do not meet your requirements, please feel free to contact us. We will choose one suitable pump model for you.

Working conditions of stainless steel seawater submersible pump:

  1. Three-phase power supply, voltage 380V (error less than 5%), frequency 50Hz (error less than 1%).

  2. Motor must be filled with clean water.

  3. The primary impeller of the pump should be immersed at least 2m under dynamic water level. The pump unit shall be less than 70m deep under static water level. The foot of motor shall be at least 3m above well bottom.

  4. Water temperatureshould not higher than 20 ℃.

  5. Sand content of the water (by quality) not more than 0.01%.

  6. Water PH 10.

  7. The content of hydrogen sulfide in watershould not be more than 1.5 mg/l.

  8. The content of chloridion in water shouldnot be higher than 400mg/l.

  9. The water source must provide enough water for the pump to work continuously

Customer Case:

1. Pump Diameter: 300QJ500-15/1

2. Pump Power: 37kw
3. Voltage: 600v/60hz
4. Application: Pumping clean water from a lagoon

500m3/h & 15m head 304 stainless steel submersible pump is made for our Canadian customers. Due to the voltage is 600V and frequency is 60Hz, so the pumps is special custom-made.

The stainless steel submersible pump will be used for pumping clean water from a lagoon. For the clean water has a little bit of corrosion, so we recommend the stainless steel.
