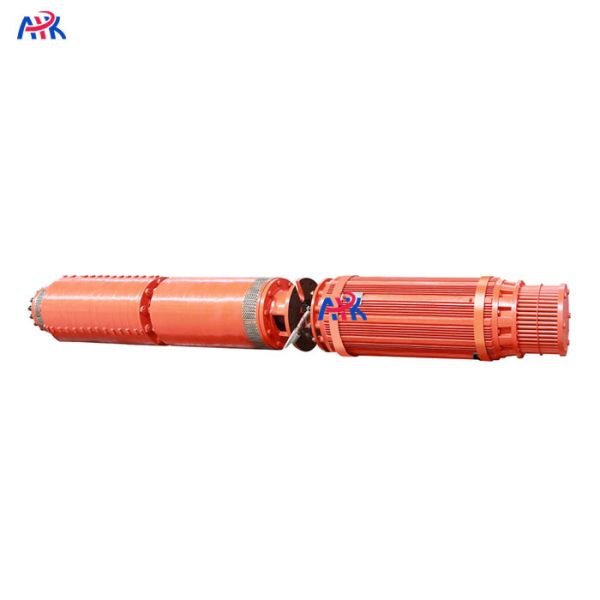

Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
Specifications
Brand Name :
APK
Model Number :
QK
Certification :
ISO;CE,BV; TUV; CCC
Place of Origin :
Henan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1369 sets per month
Delivery Time :
3-5 working days after payment confirmation
Packaging Details :
Mine submersible pump is packed by wooden case or as your request
Flow Rate :
30-500m3/h
Head :
100-900m
Material :
Cast iron/Stainless steel
Power :
30-2200kw
Install :
Horizontal/Vertical
Fuel :
Electric
Motor :
100% Copper wire
Usage :
Water
Description

100-900m Horizontal Dewatering Explosion Proof Water Mine Submersible Pump

Mine submersible pump overview:

  1. Flow: 30-500m3/h
  2. Head: 100-900m
  3. Power: 30-2200kw
  4. Materials: Cast iron/stainless steel

Mine submersible pump applications:

  1. Draw underground water from deep wells
  2. Drain water in mines, such as gold ores, silver ores, coal mine and so on, in emergency
  3. Normal drainage of mines with explosive gas atmosphere containing methane or coal dust
  4. Rescue and disaster relief and drainage for mine recovery in flooded mines.

Applications conditions of mine submersible pump:

  1. Voltage: 380v-1140v or customized
  2. Media: PH4-10
  3. Amblent water temperature: ≤50ºC
  4. Solid content: ≤10%
  5. Mounting type: vertical, horizontal, or diagonal
  6. Subduction depth: ≤700m, but the lowest flooding water level should be not less than the upper plane of outlet flange of nonreturn valve.

Mine submersible pump parameters:

Model

Flow

m3/h

Lift

m

Power

kw

460QK30-110

30

110

30

460QK30-495

30

495

120

460QK30-605

30

605

140

460QK30-1210

30

1210

410

460QK50-200

50

200

45

460QK50-500

50

500

140

570QK60-222

60

370

140

570QK80-690

80

690

300

570QK160-260

160

260

200

570QK300-325

300

325

450

570QK350-300

350

300

450

570QK400-110

400

110

200

570QK400-275

400

275

450

800QK250-200

250

200

260

800QK300-567

300

567

850

800QK350-305

350

305

470

800QK400-375

400

375

850

800QK400-900

400

900

2200

800QK500-180

500

180

470

800QK500-660

500

660

1900

If these mine submersible pump do not meet your demand, please feel free to contact us. We will choose one suitable model for you.

Mine submersible pump overview:

Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift

Customer Case:

1. Flow: 1200m3/h

2. Head: 40m

2. Pump Power: 220kw
3. Voltage: 380v/50hz
4. Application: Drain water in mines

Horizontal Dewatering Submersible Mining Water Pump Explosion Proof 100-900m Lift
