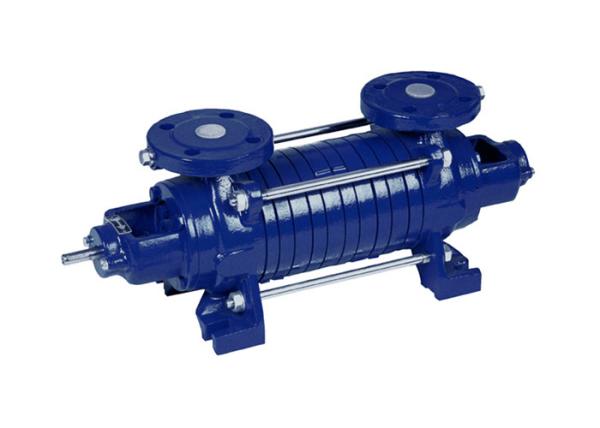

Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Cast Iron Boiler Feed Water Pump , Horizontal Multistage Electric Feeding Pump
Specifications
Brand Name :
APK
Model Number :
DG
Certification :
ISO;CE,BV; TUV; CCC
Place of Origin :
Henan China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
9863 sets per month
Delivery Time :
Within 2-5 working days upon receipt of payment
Packaging Details :
Boiler feed water pump is packed by wooden case or as your request.
Flow Rate :
3.75~185m3/h
Head :
50-1056m
Material :
Cast iron or Stainless steel
Voltage :
380v/415v/420v/460v/480v/660v /1140v
Power :
30kw-150kw
Install :
Horizontal
Motor :
100% Copper Wire
Temperature :
-20℃-150℃
Description

Head 75-603m Electric Multistage Horizontal Feeding Boiler Feed Water Pump Price

DG boiler feed water pump applications:

  • Municipal water supply&drainage
  • Water supply for high building
  • Mining drainage
  • Gardening irrigation system
  • Other industrial applications

DG multistage boiler feed water pump overview:

It is widely applied to supply water of low or high pressure boiler. It is also used for high pressure water supply and drainage of industrial and urban. The temperature of medium delivered should be in the range of -20°C to 150°C and the water pump inlet pressure should be less than 0.6M Pa.

Flow: 6.3-450m3/h

Head: 75-603m

Inlet diameter: φ40-φ250mm

Temperature: 0~80℃

DG boiler feed water pump parameters:

Model

Flow

(m3/h)

Lift

(m)

Power

(kw)

DG6-25*3

3.7

76

4

DG6-25*4

3.7

102

5.5

DG6-25*5

7.5

122

5.5

DG6-25*7

3.7

178

7.5

DG6-25*8

3.7

204

11

DG6-25*9

6.3

225

11

DG6-25*11

3.7

280

15

DG12-25*3

7.5

84

5.5

DG12-25*4

7.5

113

7.5

DG12-25*6

7.5

169

11

DG12-25*7

7.5

197

15

DG12-25*8

15

184

15

DG12-25*9

12.5

225

18.5

DG12-25*10

15

230

18.5

DG12-25*11

12.5

275

22

DG25-30*3

25

90

15

DG25-30*4

15

136

18.5

DG25-30*6

25

180

30

DG25-30*7

30

193

30

DG25-30*8

15

272

37

DG25-30*9

25

270

37

DG25-30*10

25

300

45

DG25-50*3

28

138

22

DG25-50*5

15

257.5

37

DG25-50*6

15

309

45

DG25-50*9

25

450

75

DG25-50*12

15

618

90

DG46-30*7

30

238

45

DG46-50*12

30

666

132

If these DG boiler feed water pump parameters do not meet your demand, please feel free to contact us. We will choose one suitable model for you.
