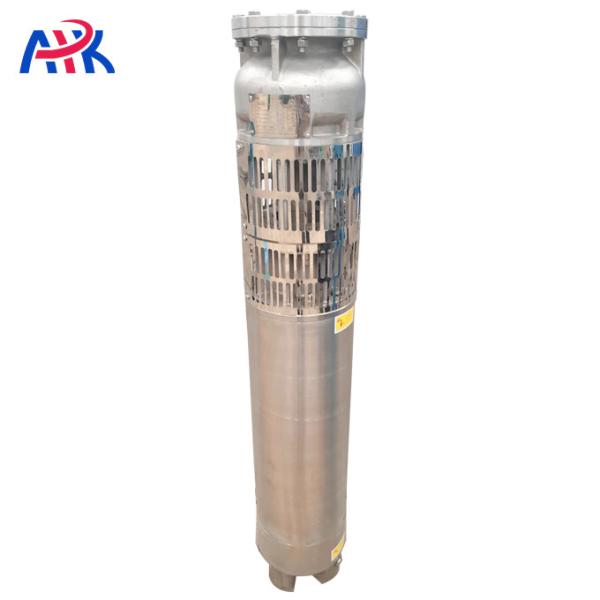

Big Flow 30hp Multistage Submersible Borehole Pump
Big Flow 30hp Multistage Submersible Borehole Pump
Big Flow 30hp Multistage Submersible Borehole Pump
Big Flow 30hp Multistage Submersible Borehole Pump
Specifications
Brand Name :
APK
Model Number :
submersible water pump
Certification :
CE; ISO9001; Five stars after-sale service
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
please kindly contact
Payment Terms :
T/T , Western Union , L/C , D/A , D/P , MoneyGram
Supply Ability :
10000 Unit/Units per Month
Delivery Time :
7-15 working days after payment confirmed
Packaging Details :
submersible sea water pump with Shock absorption,moisture-proof package, standard export wooden case
Outlet Size :
2" 3" 4" 5" 6"
Head :
18m-232m
Capacity :
18m3/h-257m3/h
Power :
22kw 30hp water submersible pump
Frequency :
3 Phase 50hz/60hz
Voltage :
380v/440v/460v/480v/600v or as per request
Material :
cast iron/SS304 SS316 SS316L Duplex stainlss/SS904L
Warranty :
24 months
Description

30hp big flow multistage centrifugal irrigation deep well submersible water pump for bore well pumps

30hp water submersible pump overview:

1. Diameter: 7 8 10 12 inch submersible pump

2. Flow: 18-257m3/h

3. Head: 18m-232m

4. Power: 22kw30hp

5. Voltage: 380v/440v/480v/600v/660v

6. Material: Cast iron/stainless steel 304/316/316l /duplex stainless/904l

Submersible water pump parameters:

Diameter
Model
Power
Flow range
Head range
Inch(")
QJ type
kw
hp
m3/h
m
8"
200QJ20-189/14
22
30
18-22
160-217
8"
200QJ20-202/15
22
30
18-22
172-232
8"
200QJ25-168/12
22
30
23-27
140-195
8"
200QJ25-182/13
22
30
23-27
150-210
8"
200QJ32-128/8
22
 30
29-35
106-150
8"
200QJ32-130/10
22
30
29-35
108-155
8"
200QJ32-143/11
22
30
29-35
121-170
8"
200QJ32-144/9
22
30
29-35
123-172
8"
200QJ40-117/9
22
30
37-43
94-140
8"
200QJ50-90/6
22
30
46-54
72-108
8"
200QJ50-91/7
22
30
46-54
73-110
8"
200QJ63-70/5
22
30
58-68
60-82
8"
200QJ80-66/6
22
30
74-86
56-75
8"
200QJ100-45/3
22
30
80-120
42-47
10"
250QJ63-80/4
22
30
58-68
68-92
10"
250QJ80-60/3
22
30
74-86
51-69
10"
250QJ160-30/2
22
30
148-172
25-35
12"
300QJ240-22/1
22
30
223-257
18-25

FAQ:

1. What is your MOQ?
Normally our MOQ is 1.
2. Can you offer sample?
Yes, we can provide samples for testing
3. What is your delivery time?
We wil deliver in 15-20 work days

Applications:
1. Ground water pumping
2. Irrigation system
3. Sea water, shipyard, offshore, floating dock, salt water
4. Drawing water from well

32m3/h 144m 30hp water submersible pumpBig Flow 30hp Multistage Submersible Borehole Pump

80m3/h 60m 30hp submersible water pumpBig Flow 30hp Multistage Submersible Borehole Pump

160m3/h 30m SS904L water submersible pump
Big Flow 30hp Multistage Submersible Borehole Pump

Storage:
1. Shenlong Pump has three complete casting lines, including Expendable casting process, wax casting mold, coated sand, it can meets the different requirements on the dimensional accuracy of casting. The wax casting mold line, special for stainless steel material, was finished in the thermostatic workshop to guarantee the casting accuracy, meanwhile, shorten the whole production time.
2. More than 85 sets production machine, includes grinding machine, CNC, lathe, Milling, High speed punch press machine, testing machine, with sufficient spare parts stock to guarantee the production capacity 11,000 sets per month. From material purchase, metalworking, impeller dynamic balance, motor winding, insulation and pump assembling, passed more than 27 inspection processes, to ensure the quality meet a criterion.
Packing And Shipping:
1. Package: 3 layers of packaging with 8mm special export wooden box, Shock absorption,moisture-proof package

2. Shipping: by sea freight, air, express
