High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor
High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor
High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor
High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor
Specifications
Brand Name :
APK
Model Number :
submersible pump
Certification :
ISO9001;ISO14001;CE,BV; TUV; SGS; five stars after-sale service
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
Please feel free to contact us
Payment Terms :
T/T, Western Union, L/C, MoneyGram, D/P, D/A
Supply Ability :
8578 pieces per month
Delivery Time :
7-15 working days after payment confirmation
Packaging Details :
Deep well submersible pump is packed with wooden case or 20 inch container.
Model :
10 inch submersible pump
Power :
7.5kw-110kw
Horsepower :
10hp-150hp
Voltage :
380v/440v/460v/480v/600v/660v/1140v
Motor :
AC Motor
Flow :
46-214m3/h
Head :
17-430m
Material :
Cast iron/stianless steel 304/316/316l/duplex stainless/super stainless steel/904l
Warranty :
24 months
ODM OEM :
Accept
Description

High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor

10 inch submersible pump parameters:

(cast iron/stainless steel 304/316/316l/duplex stainless/super stainless steel/904l and 380v/440v/480v/600v/660v or as per request.

Diameter Model Power Flow range Head range
Inch (") QJ type kw hp m3/h m
10" 250QJ50-20/1 5.5 7 46-54 17-23
10" 250QJ50-33/2 7.5 10 46-54 28-38
10" 250QJ50-100/5 25 35 46-54 85-115
10" 250QJ50-160/8 37 50 46-54 136-184
10" 250QJ50-200/10 45 60 46-54 170-230
10" 250QJ50-240/12 55 75 46-54 204-276
10" 250QJ50-280/14 63 85 46-54 268-322
10" 250QJ50-340/17 75 100 46-54 315-375
10" 250QJ50-360/18 90 120 46-54 330-390
10" 250QJ50-400/20 100 135 46-54 365-430
10" 250QJ63-40/2 11 15 58-68 34-46
10" 250QJ63-80/4 22 30 58-68 68-92
10" 250QJ63-100/5 30 40 58-68 75-100
10" 250QJ63-120/6 37 50 58-68 100-138
10" 250QJ63-160/8 45 60 58-68 130-184
10" 250QJ63-200/10 55 75 58-68 170-230
10" 250QJ63-220/11 63 85 58-68 180-253
10" 250QJ63-260/13 75 100 58-68 220-299
10" 250QJ63-300/15 90 120 58-68 205-343
10" 250QJ80-60/3 22 30 74-86 51-69
10" 250QJ80-100/5 37 50 74-86 85-115
10" 250QJ80-160/8 55 75 74-86 136-184
10" 250QJ80-200/10 75 100 74-86 170-230
10" 250QJ80-280/14 110 150 74-86 235-325
10" 250QJ100-216/12 100 135 80-120 190-252
10" 250QJ125-64/4 37 50 116-134 54-73
10" 250QJ125-128/8 75 100 116-134 109-147
10" 250QJ140-135/9 90 120 130-145 114-156
10" 250QJ160-150/10 110 150 186-214 128-170

High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor

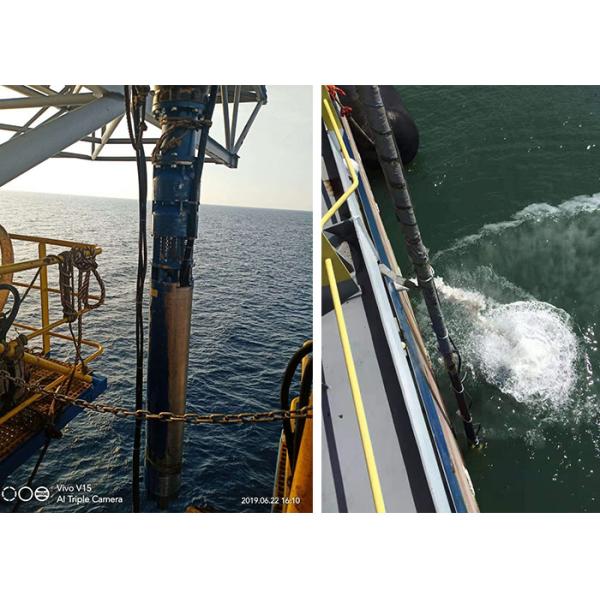

It is 75kw 100 hp submersible pump as below to export Singapore, applying in shipyard for drawing sea water.


High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor
If you also need pump spare parts, such as pump control cabinet, frequency converter, cable, valve, please kindly contact us to enquiry02@apkpump.com/Whatsapp&wechat: +86 17537187726
High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor

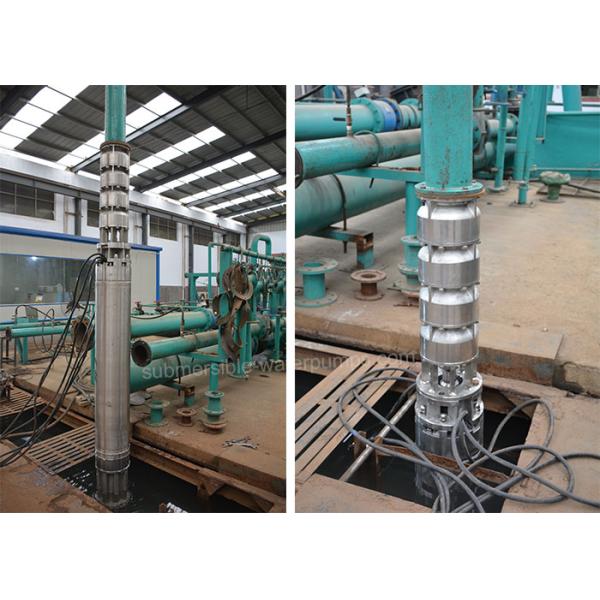

Testing: We test each submersible water pump before delivery, such as material analysis testing, casting testing, and submersible pump submerged in water for 48 hours to test leaking or not. Also we could send testing video, testing pictures, testing report, professional raw material testing reports.

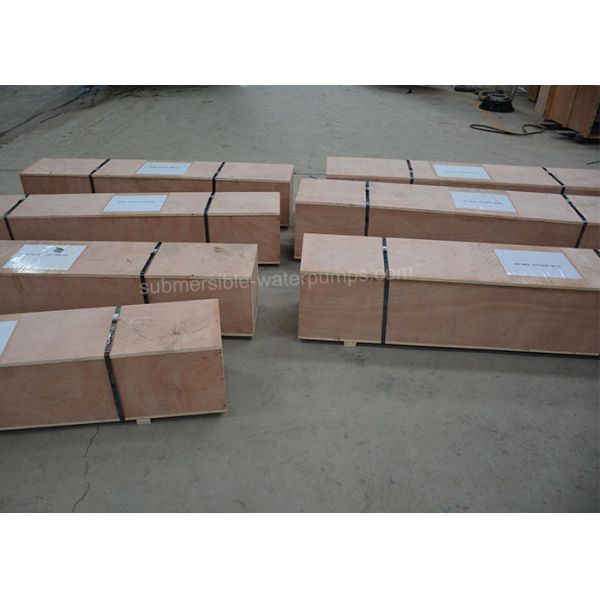

Package: submersible pump has 3 layers of packaging with 8mm special export wooden box; Shock absorption,moisture-proof package, standard export wooden case
High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor
High Lift Underwater Submersible Pump Variable Speed 10 Inch 75hp With Ac Motor
