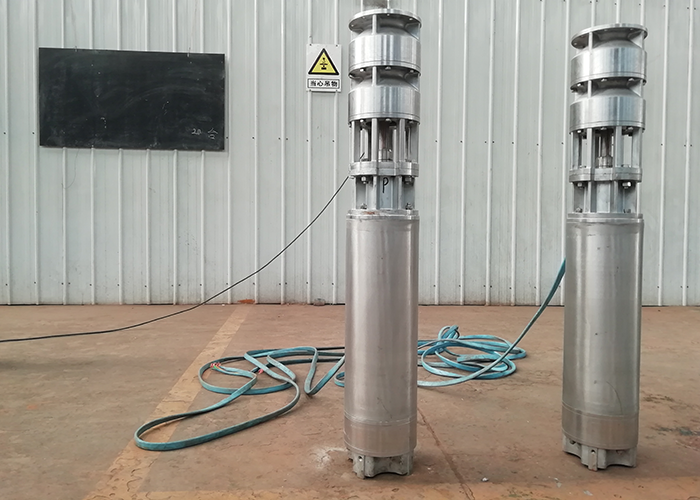

Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump
Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump
Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump
Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump
Specifications
Brand Name :
APK
Model Number :
water submersible pump
Certification :
CE; ISO9001; Five stars after-sale service
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
please kindly contact
Payment Terms :
T/T , Western Union , L/C , D/A , D/P , MoneyGram
Supply Ability :
10000 Unit/Units per Month
Delivery Time :
7-15 working days after payment confirmed
Packaging Details :
submersible water pump with Shock absorption,moisture-proof package, standard export wooden case
Power :
20hp 25hp 30hp 40hp water submersible pump
Outlet size :
2" 3" 4" 5" 6" 8"
Diameter :
7 8 10 12 inch submersible pump
Capacity :
20m3/h-540m3/h
Head :
54m-255m
Frequency :
AC 3 Phase 50hz/60hz
Voltage :
380v/440v/480v/600v/660v or as per request
Material :
cast iron/SS304/SS316/SS316L/Duplex stainless/SS904L
Warranty :
24 months
Description

Agricultural Spray 20Hp 25Hp 30Hp 40Hp 380V Centrifugal Water Borewell Submersible Pump

water submersible pump performance range:

* Pump diameter: 7 8 10 12 14 inch water submersible pump
* Flow: 9-540m3/h
* Lift: 14-325m
* Power: 15kw 18.5kw 22kw 30kw well submersible pump
* Voltage: 380v 440v 660v 1140v or as per request
* Frequency: 3 phase 50hz/60hz
* Material: Cast iron/stainless steel 304/316/316L/duplex stainless/super duplex stainless steel/SS904L

20hp 25hp 30hp 40hp water submersible pump parameters:

(cast iron or SS304/SS316/SS316L/duplex stainless/super stainless steel/SS904L and 380v/440v/480v/

600v/660v/1140v. If you would like to know more, please kindly contact us)

Diameter

Model

Power

Flow range

Head range

Inch(")

QJ type

kw

hp

m3/h

m

7"

175QJ10-240/17

15

20

9-11

230-250

7"

175QJ20-143/11

15

20

18-22

120-165

7"

175QJ25-117/9

15

20

23-27

100-135

7"

175QJ32-108/9

15

20

29-35

82-123

7"

175QJ40-84/7

15

20

37-43

71-96

7"

175QJ50-72/6

15

20

46-54

60-82

8"

200QJ20-135/10

15

20

18-22

115-156

8"

200QJ20-175/13

18.5

25

18-22

150-210

8"

200QJ20-202/15

22

30

18-22

172-232

8"

200QJ20-283/21

30

40

18-22

240-325

8"

200QJ25-126/9

15

20

23-27

100-145

8"

200QJ25-154/11

18.5

25

23-27

138-184

8"

200QJ25-182/13

22

30

23-27

150-210

8"

200QJ25-252/18

30

40

23-27

210-290

8"

200QJ32-96/6

15

20

29-35

77-115

8"

200QJ32-112/7

18.5

25

29-35

90-132

8"

200QJ32-144/9

22

30

29-35

123-172

8"

200QJ32-195/15

30

40

29-35

166-225

8"

200QJ40-78/6

15

20

37-43

67-93

8"

200QJ40-104/8

18.5

25

37-43

89-124

8"

200QJ40-117/9

22

30

37-43

94-140

8"

200QJ40-169/13

30

40

37-43

144-201

8"

200QJ50-60/4

15

20

46-54

48-72

8"

200QJ50-78/6

18.5

25

46-54

63-93

8"

200QJ50-91/7

22

30

46-54

73-110

8"

200QJ50-135/9

30

40

46-54

119-162

8"

200QJ63-56/4

15

20

58-68

48-65

8"

200QJ63-70/5

22

30

58-68

60-82

8"

200QJ63-112/8

30

40

58-68

93-131

8"

200QJ100-30/2

15

20

80-120

26-32

8"

200QJ100-45/3

22

30

80-120

42-47

8"

200QJ100-60/4

30

40

80-120

58-62

10"

250QJ50-60/3

15

20

46-54

51-69

10"

250QJ50-80/4

18.5

25

46-54

68-92

10"

250QJ50-140/7

30

40

46-54

119-161

10"

250QJ125-32/2

18.5

25

116-134

27-37

10"

250QJ160-30/2

22

30

148-172

25-35

12"

300QJ500-15/1

30

40

460-540

14-16

14"

350QJ250-25/1

30

40

233-267

22-28

14"

350QJ320-20/1

30

40

305-335

18-22

Applications:
1. Ground water pumping
2. Irrigation system
3. Sea water, shipyard, offshore, floating dock, salt water
4. Drawing water from well

Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump

250m3/h 70m 75kw 100hp 440v 60hz stainless steel 316L submersible sea water lift pump in Singapore

Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump

APK pump factory not only manufacture water pumps, but also manufacture match pump accessories, including pump control cabinet, frequency converter(ABB or as per request), cable, valve.

Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump

Package: the well pump has 3 layers of packaging with 8mm special export wooden box. Shock absorption, moisture-proof package.

Agricultural Spray Deep Well Submersible Pump 380V Submersible Centrifugal Water Pump

FAQ:

1. What's your MOQ?

one piece

2. What's your deliver method?

Sea freight, express, airplane

3. What's your payment?

T/T
