AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty
AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty
AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty
AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty
Specifications
Brand Name :
APK
Model Number :
water submersible pump
Certification :
CE; ISO9001; Five stars after-sale service
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
please kindly contact
Payment Terms :
T/T , Western Union , L/C , D/A , D/P , MoneyGram
Supply Ability :
10000 Unit/Units per Month
Delivery Time :
7-15 working days after payment confirmed
Packaging Details :
submersible water pump with Shock absorption,moisture-proof package, standard export wooden case
Power :
10hp 15hp 20hp 30hp 40hp submersible water pump
Outlet size :
2" 3" 4" 5" 6" 8"
Diameter :
7 8 10 12 14 inch submersible pump
Capacity :
9m3/h-540m3/h
Head :
12m-310m
Frequency :
AC 3 Phase 50hz/60hz
Voltage :
380v/440v/480v/600v/660v or as per request
Material :
cast iron/SS304/SS316/SS316L/Duplex stainless/SS904L
Warranty :
24 months
Description

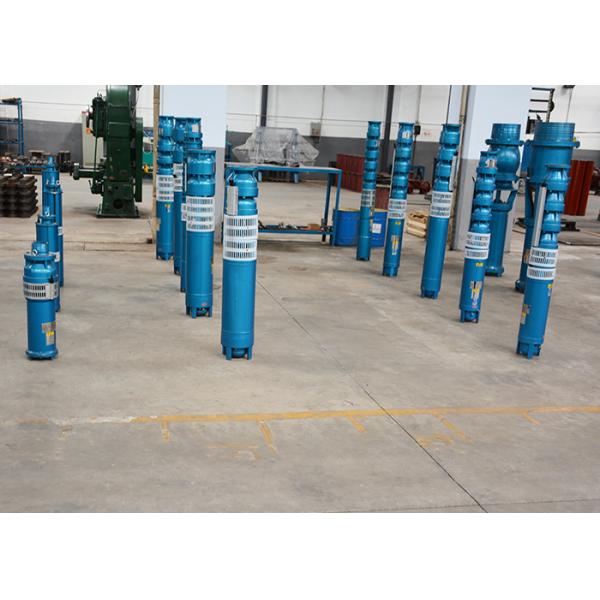

10hp 15hp 20hp 30hp 40hp open well submersible water pumps 3 phase borehole water submersible pump

water submersible pump performance range:

* Pump diameter: 7 8 10 12 14 inch water submersible pump
* Flow: 9-540m3/h
* Lift: 14-325m
* Power: 15kw 18.5kw 22kw 30kw well submersible pump
* Voltage: 380v 440v 660v 1140v or as per request
* Frequency: 3 phase 50hz/60hz

* Material: Cast iron/stainless steel 304/316/316L/duplex stainless/super duplex stainless steel/SS904L

10hp 15hp 25hp 30hp 40hp water submersible pump parameters:

(cast iron or SS304/SS316/SS316L/duplex stainless/super stainless steel/SS904L and 380v/440v/480v/

600v/660v/1140v. If you would like to know more, please kindly contact us)

Diameter Model Power Flow range Head range
Inch(") QJ type kw hp m3/h m
7" 175QJ10-121/9 7.5 10 9-11 96-140
7" 175QJ10-180/13 11 15 9-11 173-187
7" 175QJ15-80/6 7.5 10 13-17 64-96
7" 175QJ20-104/8 11 15 18-22 89-120
7" 175QJ25-65/5 7.5 10 23-27 53-76
7" 175QJ25-91/7 11 15 23-27 75-105
7" 175QJ32-48/4 7.5 10 29-35 40-56
7" 175QJ32-72/6 11 15 29-35 60-80
7" 175QJ40-36/3 7.5 10 37-43 28-42
7" 175QJ40-60/5 11 15 37-43 50-70
7" 175QJ50-36/3 7.5 10 46-54 28-42
7" 175QJ50-48/4 11 15 46-54 40-56
8" 200QJ15-81/6 7.5 10 13-17 68-92
8" 200QJ20-162/12 18.5 25 18-22 138-187
8" 200QJ20-202/15 22 30 18-22 172-232
8" 200QJ20-270/20 30 40 18-22 230-310
8" 200QJ25-56/4 7.5 10 23-27 45-67
8" 200QJ25-84/6 11 15 23-27 67-100
8" 200QJ25-154/11 18.5 25 23-27 138-184
8" 200QJ32-48/3 7.5 10 29-35 38-58
8" 200QJ32-112/7 18.5 25 29-35 90-132
8" 200QJ32-130/10 22 30 29-35 108-155
8" 200QJ40-45/3 7.5 10 37-43 32-48
8" 200QJ40-104/8 18.5 25 37-43 89-124
8" 200QJ50-30/2 7.5 10 46-54 24-36
8" 200QJ50-75/5 18.5 25 46-54 60-90
8" 200QJ63-28/2 7.5 10 58-68 24-33
8" 200QJ80-22/2 7.5 10 74-86 19-25
8" 200QJ80-55/5 18.5 25 74-86 47-63
8" 200QJ100-15/1 7.5 10 80-120 12-16
8" 200QJ100-60/4 30 40 80-120 58-62
10" 250QJ50-33/2 7.5 10 46-54 28-38
10" 250QJ50-80/4 18.5 25 46-54 68-92
10" 250QJ50-120/6 30 40 46-54 102-138
10" 250QJ63-40/2 11 15 58-68 34-46
10" 250QJ80-20/1 7.5 10 74-86 17-23
10" 250QJ100-18/1 7.5 10 80-120 16-21
10" 250QJ125-32/2 18.5 25 116-134 27-37
10" 250QJ140-30/2 18.5 25 130-150 26-34
12" 300QJ240-22/1 22 30 223-257 18-25
12" 300QJ500-15/1 30 40 460-540 14-16
14" 350QJ250-25/1 30 40 233-267 22-28
14" 350QJ320-20/1 30 40 305-335 18-22

Applications:
1. Ground water pumping
2. Irrigation system
3. Sea water, shipyard, offshore, floating dock, salt water
4. Drawing water from well

Customer case:

40m3/h 36m 7.5kw 10hp 80 pieces water submersible pump to Kazakhstan

AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty

AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty

APK pump factory not only manufacture water pumps, but also manufacture match pump accessories, including pump control cabinet, frequency converter(ABB or as per request), cable, valve.

AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty

Package: the well pump has 3 layers of packaging with 8mm special export wooden box. Shock absorption, moisture-proof package.

AC 3 Phase Open Well Water Pump Submersible Borehole Water Pump 24 Months Warranty

FAQ:

1. What's your MOQ?

one piece

2. What's your deliver method?

Sea freight, express, airplane

3. What's your payment?

T/T
