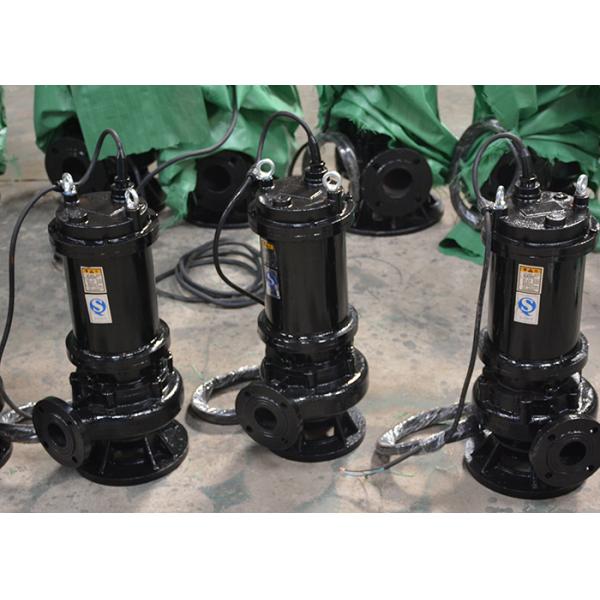

60m3/h 50m 22kw 30hp SS304 Sewage Drainage Non-Clogging Industrial Submersible Water Pump

Non clogging submersible water pump working conditions:

Proper medium: liquids with chemical property similar to pure water should be non-corrosive. Solid size should be no larger than 30% of the pump suction diameter. Fiber length should not be over 2.5 times of the pump suction diameter. When the medium density is more than 1.05, the motor power should be increased accordingly to prevent the motor from overload operation.

Non clogging submersible water pump applications:

It is especially suitable for underground water pumping in rural areas, field drainage and irrigation, garden irrigation and household water use, and can also be used to remove industrial water accumulation, water supply and drainage for construction and breeding industry.

Non clogging submersible water pump models:

Sewage water submersible pump installation:

The levelness of the coupling device should be calibrated by a level when coupling installation is adopted. Horizontal level
tolerance should not exceed 0.1mm/m. Use the measure gage to calibrate parallelism of two coupling rods to ensure the parallelism tolerance will not exceed 0.2mm/m.

Tighten the anchor bolt to make sure there is no looseness between the anchor bolt and concrete in case of bad influence on pump performance when starting.

For easy maintenance and safe use, install a regulating valve on the outlet pipe and a pressure gauge near the outlet to guarantee the normal operation within the rated performance range, which lengthens the lifetime of pumps. Rotate the impeller from the suction side after installation. Disassemble the pump and find out the reasons if there is friction or stuck pump.

The pump installation can be divided into three types, movable type, fixed type and coupling type
