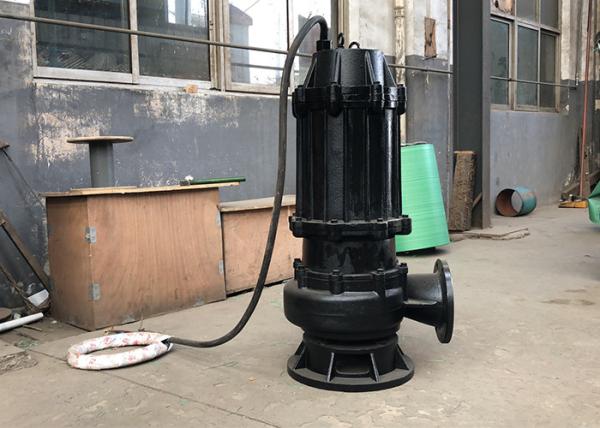

Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68
Specifications
Brand Name :
APK
Model Number :
WQ
Certification :
ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
Please feel free to contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8695 pieces per month
Delivery Time :
2-5 working days
Packaging Details :
Submersible sewage pump is packed with wooden case or 20 inch container.
Head :
7m 15m 10m 30m 25m submersible sewage pump
Flow :
130m3/h 180m3/h 400m3/h 300m3/h 500m3/h submersible sewage pump
Power :
22kw 30hp sewage pump
Frequency :
3 phase 50hz/60hz
Voltage :
220v/380v/440v or as per request
Material :
Cast iron/stainless steel
Protection class :
IP68
Motor :
Copper wire
Description

Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68

22kw 30hp submersible sewage pump is maximum flow is 250m3/h, however, head is low. Main material is cast iron and stainless steel.

Our WQ sewage submersible pump is sewage pump developed on the basis of the introduction of foreign advanced technology. WQ series submersible sewage pump is power irrigation equipment united by the motor and the pump, especially the swirling impeller and double-channel impeller matched with spiral type centrifugal pump body, which have extremely strong drainage capacity.

The motor part adopts mechanical seals of hard corrosive double end face ceramic, which have very good effect of seepage prevention, its protection level is IP68 and designed insulation class is grade E, more rinning more safe, reliable, and long service life, convenient installation.

22kw 30hp submersible sewage pump overview:

  1. Flow: 130m3/h 180m3/h 400m3/h 300m3/h 500m3/h submersible sewage pump
  2. Head: 7m 15m 10m 30m 25m submersible sewage pump
  3. Power: 22kw 30hp submersible sewage pump
  4. Voltage: 220v/380v/440v or as per request
  5. Frequency: 3 phase 50hz/60hz
  6. Material: Cast iron/stainless steel

Rain Drainage Fecal Submersible Sewage Water Pump 22kw 30hp 3 Phase IP68

WQ submersible sewage pump parameters:

Model Outlet diameter (mm) Flow (m3/h) Head (m) Power (kw) Speed (r/min)
WQ50-18-30-3 50 18 30 3 2900
WQ50-40-15-4 50 40 15 4 2900
WQ50-25-32-5.5 50 25 32 5.5 2900
WQ50-20-40-7.5 50 20 40 7.5 2900
WQ65-25-15-2.2 65 25 15 2.2 2900
WQ65-25-30-4 65 25 30 4 2900
WQ65-30-40-7.5 65 30 40 7.5 2900
WQ65-35-50-11 65 35 50 11 2900
WQ65-35-60-15 65 35 60 15 2900
WQ80-43-13-3 80 43 13 3 2900
WQ80-40-15-4 80 40 15 4 2900
WQ80-65-25-7.5 80 65 25 7.5 2900
WQ100-110-10-5.5 100 110 10 5.5 1450
WQ100-100-15-7.5 100 100 15 7.5 1450
WQ100-80-20-7.5 100 80 20 7.5 1450
WQ100-100-25-11 100 100 25 11 1450
WQ100-100-30-15 100 100 30 15 1450
WQ125-130-15-11 125 130 15 11 1450
WQ125-130-20-15 125 130 20 15 1450
WQ150-150-13-11 150 150 13 11 1450
WQ150-180-15-15 150 180 15 15 1450
WQ150-180-20-18.5 150 180 20 18.5 1450
WQ150-180-25-22 150 180 25 22 1450
WQ150-130-30-22 150 130 30 22 1450
WQ200-300-7-11 200 300 7 11 1450
WQ200-250-11-15 200 250 11 15 1450
WQ200-250-15-18.5 200 250 15 18.5 1450
WQ200-400-10-22 200 400 10 22 1450
WQ200-300-15-22 200 300 15 22 1450
WQ250-500-7-22 250 500 7 22 1450

It is one part of 22kw 30hp submersible sewage pump parameters. If you would like to know more, please feel free to contact us.We will choose one suitable pump model for you.
