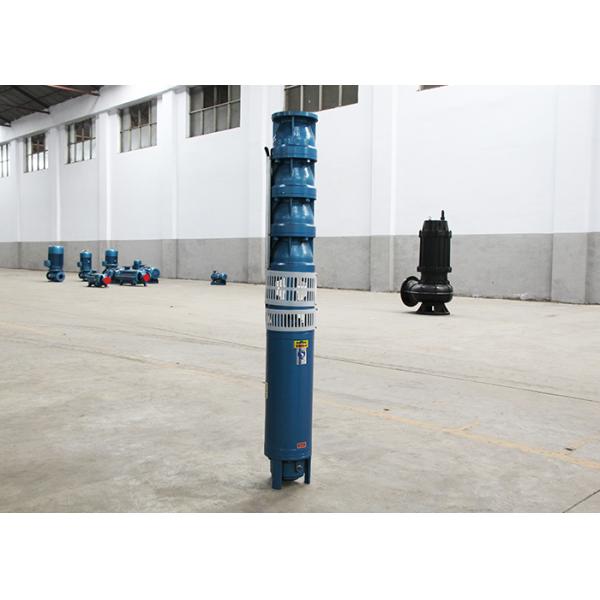

AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance
AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance
AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance
AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance
AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance
AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance
Specifications
Brand Name :
APK
Model Number :
QJ
Certification :
ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
Please feel free to contact us
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8578 pieces per month
Delivery Time :
2-5 working days
Packaging Details :
Deep well submersible pump is packed with wooden case or 20 inch container.
Pump Type :
7 8 10 12 14 inch submersible lake water pump
Head :
14-290m
Flow :
9-335m3/h
Power :
25 hp 30kw submersible lake water pump
Voltage :
380v/420v/660v or as per request
Frequency :
3 Phase 50hz/60hz
Material :
Cast iron/ss304/ss316/ss316l
Motor :
AC Motor
OEM ODM :
Accept
Quality warranty :
One year or more
Description

submissive pumps 25 hp 30kw quality openwell submersible lake water pump

25 hp 30kw submersible pump performance range:

  • Pump diameter: 7 8 10 12 14 inch irrigation submersible pump
  • Flow: 9-335m3/h
  • Head: 14-290m
  • Power: 25 hp 18.5kw 30kw 40hp submersible pump
  • Voltage: 380v/460v/660v or as per request
  • Frequency: 3 phase 50hz/60hz
  • Material: cast iron/stainless steel

25 hp 30kw submersible pump applications:

  • farmland irrigation
  • fountain project
  • spray irrigation
  • drawing water from wells
  • water supply and drainage system for industrial or civil buildings
  • water drawing system in hills and mountain areas
  • sea water, salt water

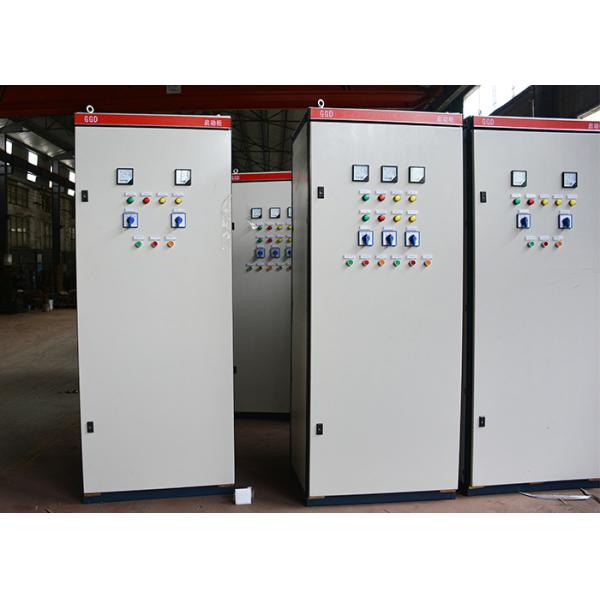

Note: mateched submersible pump parts we also have, such as control cabinet, cable, etc.

AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance

AC Motor 25 Hp 30kw Deep Well Submersible Pump 3 Phase 50hz / 60hz High Performance

25 hp 30kw submersible pump parameters:

Pump diameter Model Power Flow Head
Inch (") QJ Types kw hp m3/h m
8" 200QJ20-162/12 18.5 25 18-22 138-187
8" 200QJ20-270/20 30 40 18-22 218-295
8" 200QJ25-154/11 18.5 25 23-27 138-184
8" 200QJ25-252/18 30 40 23-27 210-290
8" 200QJ32-104/8 18.5 25 29-35 90-132
8" 200QJ32-176/11 30 40 29-35 148-203
8" 200QJ50-75/5 18.5 25 46-54 60-90
8" 200QJ50-135/9 30 40 46-54 119-162
8" 200QJ63-98/7 30 40 58-68 84-114
8" 200QJ80-55/5 18.5 25 74-86 47-63
8" 200QJ80-77/7 30 40 74-86 66-88
8" 200QJ100-60/4 30 40 80-120 58-62
10" 250QJ50-80/4 18.5 25 46-54 68-92
10" 250QJ50-140/7 30 40 46-54 119-161
10" 250QJ63-60/3 18.5 25 58-68 51-69
10" 250QJ63-100/5 30 40 58-68 75-100
10" 250QJ80-80/4 30 40 74-86 68-92
10" 250QJ100-72/4 30 40 80-120 64-84
10" 250QJ125-32/2 18.5 25 116-134 27-37
10" 250QJ140-30/2 18.5 25 130-150 26-34
10" 250QJ140-45/3 30 40 130-145 65-86
10" 250QJ160-45/3 30 40 148-172 38-51
12" 300QJ200-20/1 18.5 25 186-214 17-23
12" 300QJ500-15/1 30 40 460-540 14-16
14" 350QJ250-25/1 30 40 233-267 22-28
14" 350QJ320-20/1 30 40 305-335 18-22

It is one part of 25 hp 30kw submersible lake water pump parameters. If you would like to know more details, please feel free to send an inquiry. We will reply as soon as possible.
