Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use
Specifications
Place of Origin :
China
Brand Name :
CONTEC
Model Number :
trolley
Packaging Details :
carton package
Price :
$130.00 - $150.00/Units
Certification :
CE,ISO13485
MOQ :
1PCS
Payment Terms :
T/T, Western Union,Payoneer
Supply Ability :
100000pcs/month
Delivery Time :
about 5 days
Power Source :
Machinery
Warranty :
2 years
After-sale Service :
Online technical support
Material :
Plastic
Shelf Life :
2 years
Quality Certification :
None
Instrument classification :
Class II
Safety standard :
None
Type :
Medical Centrifuge
Product name :
for patient monitor
Port :
Beijing/Tianjin
Description

CONTEC moving trolley mobile patient monitor Bracket Stand hospital use cart

Moving Trolley Mobile Patient Monitor Bracket Stand Hospital Use

2 Brief Introduction

2.1 Introduction

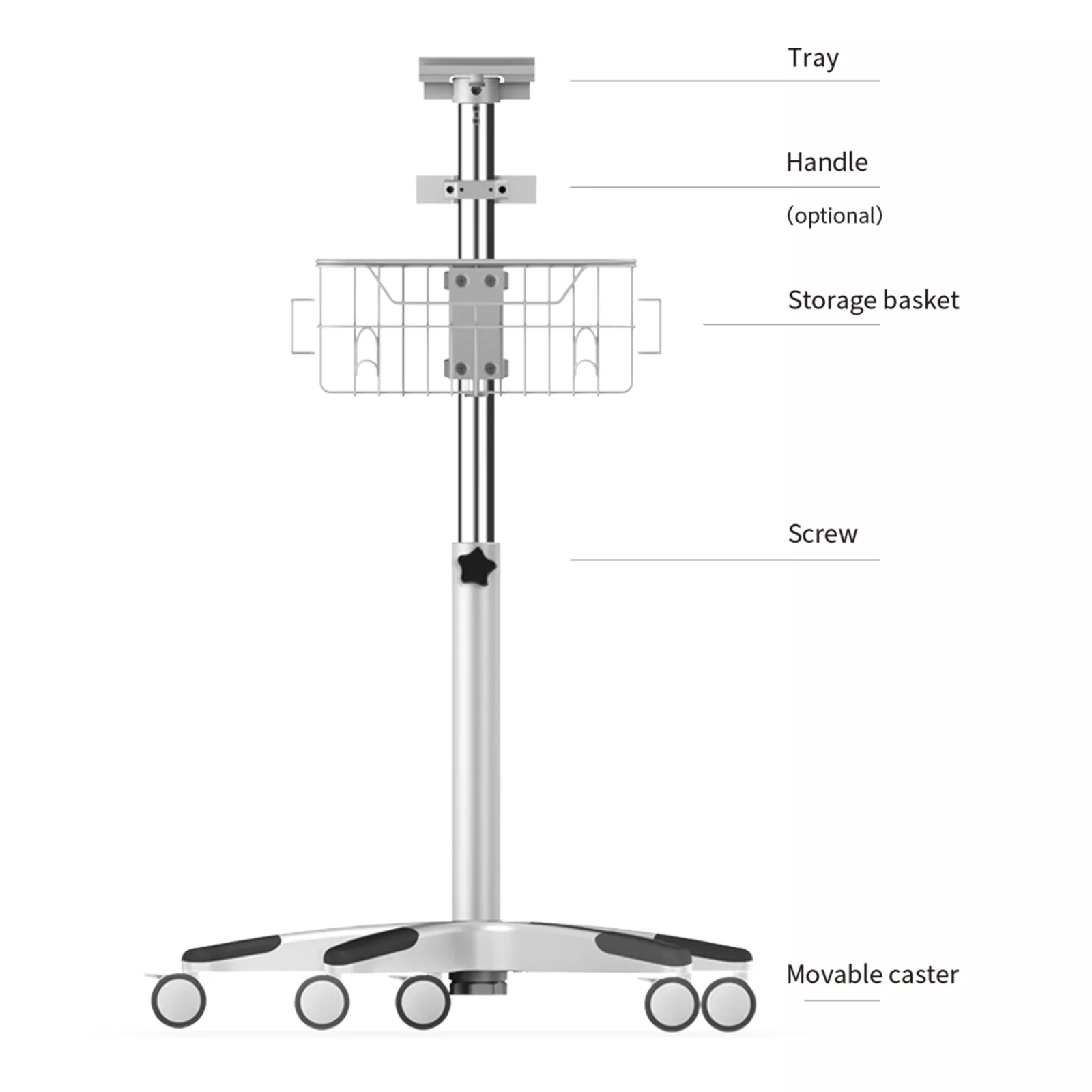

It is a medical device bracket applied to hospital operating room, hospital bedside, ICU ward and family monitoring, etc., features in: aluminium alloy materials, elegant and fashion in appearance; adjustable horizontal rotation; adjustable 15° elevation angle, more comfortable to view; adjustable height.

2.2 Function

1) It is applicable for using on Patient Monitor (model: CMS6000 / CMS7000 / CMS8000 / CMS9000 / CMS9200, etc.) manufactured by our company.(MT-A101)

2) When applied on TS13 / TS15 Patient Monitor manufactured by our company, some assemblies (such as connection plate, etc.) need to be selected. (MT-A102)

3) When applied on Patient Monitor (model: CMS5100 / CMS6500 / CMS6800, etc.) manufactured by our company, the CMS6800 fixed plate assembly need to be selected. (MT-A103)

4) Horizontal rotation is adjustable.

5) Adjustable 15° elevation angle, more comfortable to view.

6) The height is adjustable.

2.3 Accessories

Allen wrench×3

User Manual×1

Screw cooperated with monitor×4

2.4 Physical characteristic

Horizontal rotation: ≤ 360°

Vertical elevation angle: ≤ 15°

Height range: 850 mm ~ 1250 mm

Maximum load: 30 Kg

Product weight: 5 Kg

Product dimension: 800 mm (L) × 800 mm (W) × 1250 mm (H)

Packing dimension: 710 mm (L) × 710 mm (W) × 270 mm (H)

Packing weight: 10 Kg

2.5 Optional configuration

Handle
