Probes

5 Steps Multi-frequency

3.5Mhz abdominal probe

2.0, 3.0, 3.5, 4.0, 5.5Mhz

7.5Mhz linear probe

6.0, 6.5, 7.5, 10.0, 12.0Mhz

6.5Mhz transvaginal probe

5.0, 6.0, 6.5, 7.5, 9.0Mhz

Displaying mode

B,B/B,4B,B/M,M, B/C,B/C/D,B/D, duplex, triplex, CFM, PW

Signal processing:

Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, spectral processing, CFM processing, real-time
dynamic focusing, dynamic aperture in all fields

Image processing:

THI
Storage: 16G
Power adjustable
Smoothing function
Edge enhancement
One-key optimization
Image conversion
Wall filter adjustable
Base line adjustable
PRF adjustable
AIO-Auto image optimization
IZoom: Instant full screen image
I-Image: intelligent optimization
MBF: Multi Beam Former
SA: Synthetic Aperture Ultrasonic imaging
Iclear: Speckle Noise Reduction
CDF: Contunuous Dynamic Focusing

General measurement

Normal, MSK, ABD, OB, Pelvic,Urology, Cardiac, Small Parts, Vascular

Normal measurement

Volume, V3L, STD_S, Area Trace,Mtime, MHR, D Time, DV, D Common, D Auto, Area, Angle, CrossLine, STD D, ParalleLine, Mdist,MV, D
HR, DA, D Trace

ABD packages

ABD, Aorta, R_Kidney & L_Kidney, Bladder, Prostate

OB Packages

Early_OB, Rt-Ovary, Lt-Ovary, Uterus, Fetal_Biome, Long_Bones, AFI

Pelvic Packages

Uterus, Rt/Lt - Ovary, Rt/Lt-Follicle,

Urology packages

Rt/Lt- kidney measurement, Bladder, Prostate,Rt/Lt_Testicle

Small Parts

Rt/Lt_Thyroid, Rt/Lt_Testicle, Vessel, Breast

Vascular

Stenosis D, senosis A, Intima, Arterial, Venous

MSK

Distance, Area, Hip_Angle

Scanning depth

≥250mm

Probe elements

80

Cine loop

Automatically & manually

Image storage format

BMP, JPEG, PNG, DICOM(Option)

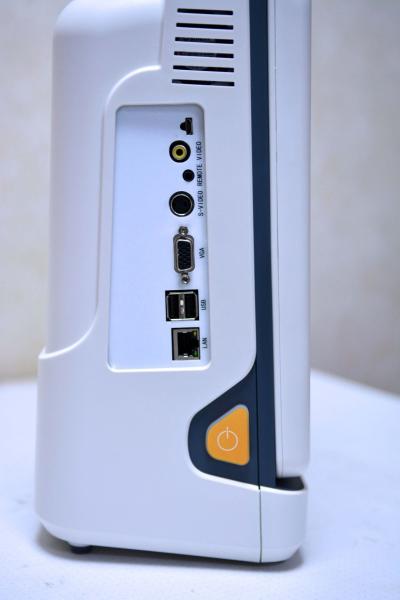

Input/output ports

Video Port, S-Video Port, Remote Port, LAN1/2 Port, VGA

Standard Configuration

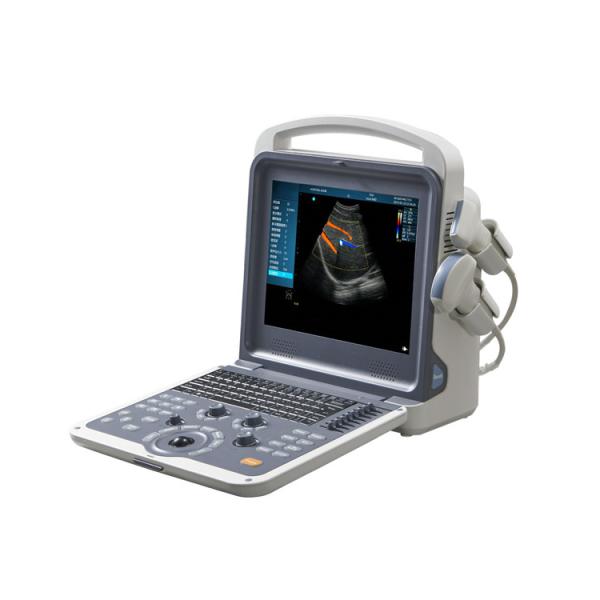

Main unit, 12 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, 2 Probe sockets, User’s Manual, hard disk (SSD)

Options

6.5Mhz Transvaginal Probe, Trolley, Printers, Biopsy kit,Aluminum case

Applicable Printers

EPSON-L130-Series
HP-LaserJet-1020
HP-LaserJet-P2035
SONY UP-D897
SONY UP-D898MD
SONY UP-X898MD
