Clinical Aplication

The 1000A/P is intended for axial biometric parameter measurement and corneal thickness measurement in clinical ophthalmology.

General Description

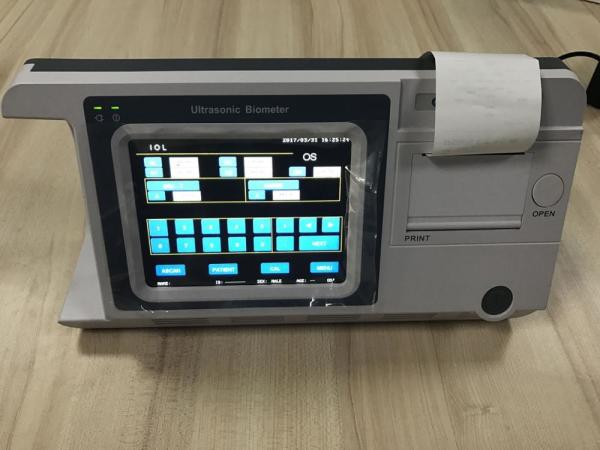

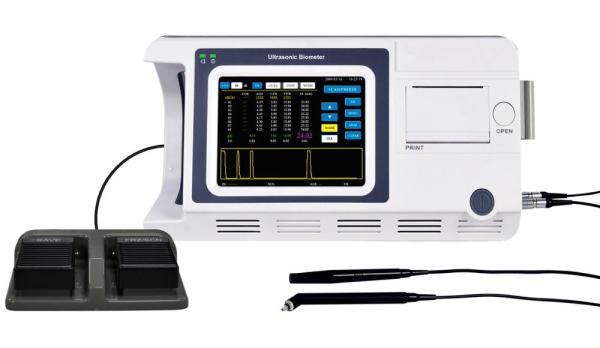

The 1000A/P Ultrasonic Biometer for Ophthalmology is an ultrasonic measuring instrument based on pulse reflection. It comprises two units: A Mode Eye Axis Biometric Parameter Measuring Unit (A Biometer) and Corneal Thickness Measuring Unit (Pachymeter). The A Biometer consists of a 10MHz A-Scan probe and an axis biometric parameter measuring unit. The Pachymeter consists of a 15-20MHz pachymetric probe and the measuring unit. MSL

The MSL1000A/P has a built-in Thermal Printer, used to print out patient information, A-Scan measuring waveform, IOL calculating parameter and result, as well as corneal thickness measuring result and corneal thickness distribution map.

The built-in memory of the 1000A/P can store up to 180 patients' records.

Main Specifications

A Biometer:

Ultrasonic frequency: 10MHz;Display resolution: 0.01mm;Total gain of receiver: ≥100dB;Adjustable gain scope: 0~50dB;Measuring scope (AL): 15 mm~40mm; Measuring accuracy: ≤±0.05mm;Measuring Parameter: ACD, LENS, VITR and AL; Measuring mode: automatic mode or manual mode can be selectable. Automatic mode for Normal, Cataract and Aphakic mode; Measuring method: contact and immersion, can be selectable; IOL calculation: SRK/T, SRK-II, BINK-II, HOLLADAY, HOFFER-Q, HAIGIS, and IOL calculation formula after corneal refractive surgery: HISTORY DERIVED, DOUBLE-K/SRK-T, REFRACTION DERIVED, ROSA and SHAMMAS.

Pachymeter:

Ultrasonic frequency: 15-20MHz; Display resolution: 1μm; Measuring scope: 0.23mm~1.2mm; Measuring accuracy: ≤±5μm

Certificate:

CFDA,CE

Accessories:

Tolley,Immersion Shell
