Specifications
Place of Origin :
China
Brand Name :
SUCE
Model Number :
MSLVU41 plus
Packaging Details :
Standard export package
Supply Ability :
1000 Set/Sets per Month
Price :
$1,100.00 - $4,500.00/Sets
Certification :
CE
MOQ :
1PCS
Payment Terms :
T/T, Western Union
Delivery Time :
5-8 work days
Power Source :
Electricity
Warranty :
1 Year
After-sale Service :
Online technical support
Material :
Metal
Shelf Life :
1years
Quality Certification :
CB
Instrument classification :
Class I
Safety standard :
GB/T 32610
Port :
Guangzhou
Description
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Product Description
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
The MSLVU41 Plus provides all the power you need for today’s challenging clinical environment, yet remain ultra-portable,
ultra-affordable. With its cutting-edge imaging technologies, comprehensive functions, precise and intuitive workflow, ergnomic and eco-friendly design, versatile transducers for different body scans and clinic departments, for example emergency, hospitals, clinics, out calls, etc . We firmly believe the BPU60 to be the very best full-body portable ultrasound in its class today.
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Mobility Innovative Design
*Light Weight(7.5kg)
*15" High Resolution LED(rotatable 0°~45°)
*Built-in Battery(120 minutes) for off-site, emergency care
*Dual active probe connectors
*Built-in probe holders
*Rich Peripherals Ports (LAN,VGA,HDMI,USB,Video,Remote)
*Ergnomic Trolley(Accessory box, printer&probe holders)
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Mobility Innovative Design
*B, B/B, B/M, M, 4B,Color Doppler, CW Doppler, PW Doppler, Power Doppler, Tissue
*Harmonics, Auto Optimization, Needle Visualization, DICOM
*Automatic trace on PW frequency map;
*Automatic spectrum calculation;
*Automatic saving for preset or to default status;
*Automatic standby protects host and the transducers and prolongs the system lifespan;
*Measurement packages of all parts meet with clinical needs of different applications;
*Built-in workstation helps quickly searching patient data and reviewing cines, which facilitates the doctor’s operation;
*Fast save and fast review for current patients;
*Full patient database and image management solutions;
*Customized settings based on your own working style;
*Comprehensive data storage, transmission solutions and intelligent data management
*Full patient database and image management solutions.
*Biopsy Guide;Lito;PICC;B/C;Global zoom up to 10X zoom;
*OB measurement:body weight, single,gestational age and growth curve, amniotic fluid index,fetal physiological score measurement, etc.
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Product Parameters
System Overview
Standard Features:
Based on the advanced imaging technology and ergonomic design,MSLVU41 plus is equipped with superior image quality, comprehensive functions, high cost effectiveness and mobility, which make it applicable to different body scans and clinic departments, for example emergency, hospitals, clinics, out calls, etc. With this machine, we are capable to provide very comprehensive imaging system solutions.

Application scenarios:
* Applicable to different body scans, for example, Abdomen, Obstetrics, Gynecology, Cardiology, Small Parts, Urology, Kidney, MSK(Musculoskeletal); Carotid; Orthopedic; Vascular
* and varied user Ultrasonography, emergency, operating room, ICU, ward and out‐

Ultrasound platform: Based on linux, stable performance, security data

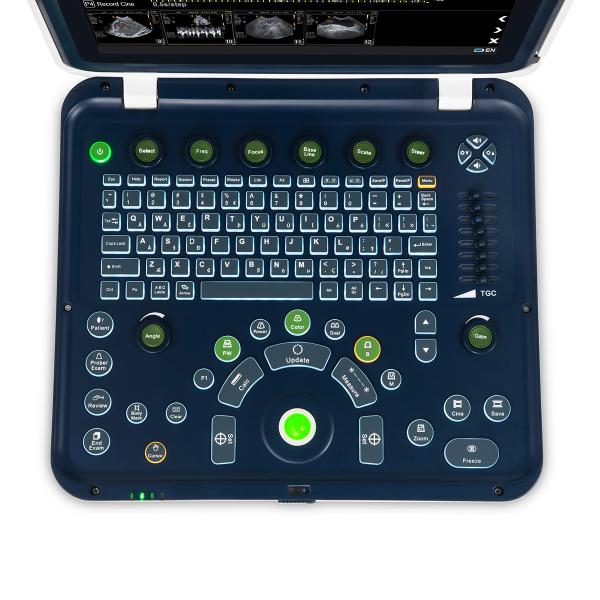

Keyboard: All backlit keyboard,realizes easy work even under weak light
Imaging Modes: B, B/B, B/M, M, 4B, C, PDI, PW
Gray scale levels: 256
Transducer Type: Convex Array,Linear Array,Endocavity Array
Transducer frequency: 2‐15 Mhz
Transducer connector: 2 active transducer connectors support quick switch between different probe needs
Scanning depth: up to 351mm
Language: Software: English, Chinese, Spanish and more(ODM support!)
Keyboard Input: English, Chinese, and more User Manual: English, Chinese
Physical Spec
System Dimension: Height: 402mm Width: 385mm Depth: 98mm
Weight: Around 8.5 kg (Include Battery)
Physical channels: 64
Transducer element: 128
Monitor:
* 15' high resolution LED monitor with tilting to view it freely and comfortably
* Resolution:1024×768
* Brightness Adjustable
* Max Opening Angle:45°

Power: System operates via AC power & battery
AC Adapter:
* Model:MANGO‐BMV‐15AD‐C5
* Voltage:100‐240VAC
* Frequency:50/60 Hz
* Currency:5A
* Output:15V

Battery: (optional)
* Model: LY606090
* Lithium‐Ion,1V , 8000mAH
* Chargeto Full: 6 hours
* Max Duration: 120 minutes real time scan *

Operating Environment:
* Temperature: 0‐40 °C
* Humidity:30%‐85% (non‐condensing)
* Pressure: 700hPa‐1060hPa

Storage and Transport:
* Temperature: ‐20‐55 °C
* Humidity:30%‐95%(non‐condensing)
* Pressure: 700hPa‐1060hPa
Details Images
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
Color Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital ClinicPacking & DeliveryColor Doppler Portable Ultrasound Machine Medical USG PW CW DICOM Cardiac Probe Cardiology for Hospital Clinic
