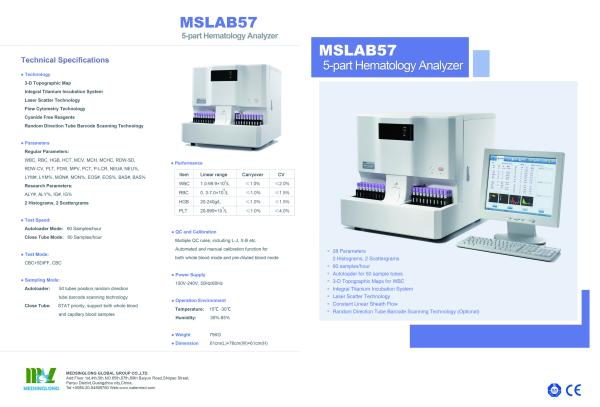

Technical Specifications
1. Principles
Impedance method for RBC and PLT counting
Cyanide free reagent for hemoglobin test
Flow Cytometry (FCM) + Tri-angle laser scatter + Chemical dye
2. Parameters
23 parameters: WBC, Lym%, Mon%, Neu%, Bas%, Eos%, Lym#, Mon#, Neu#, Eos#, Bas#, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW, PCT
3 histograms for WBC, RBC and PLT
3. Reagent
M-52D Diluent, M-52DIFF Lyse, M-52LH Lyse, Probe Cleanser
4. Performance
Parameter Linearity Range Precision Carryover
WBC 0-100×10 9 /L ≤2% (4-15×10 9 /L) ≤0.5%
RBC 0-8×1012/L ≤1.5% (3.5-6.0×1012/L) ≤0.5%
HGB 0-250g/L ≤1.5% (110-180g/L) ≤0.6%
PLT 0-1000×10 9 /L ≤4.0% (100-500×10 9 /L) ≤1.0%
5. Sample Volume
Prediluted mode 20 μL
Whole blood mode 15 μL
Capillary whole blood mode 15 μL
6. Throughput
40 samples per hour
7. Display
10.4 inch TFT Touch Screen
1.More than 2000 hospitals/clinic have become our partners
2. Superior quality with factory price
3. Quick reply and consideration service
4. CE,ISO Approval
5. Fast delivery by air, sea or in other ways
6. More than 10 years in medical equipment supply field
7. Exported to more than 109 countries
8. Warranty time: AT LEAST 360 days
9.Excellent and immediate after-sale service
