Specifications
Place of Origin :
China
Brand Name :
SUCE
Model Number :
EC41
Packaging Details :
Dimension & weight:
Equipment: 38 cm*37 cm*11 cm; 5.8kg
Package: 45cm*24cm*49cm; 8.7kg
Supply Ability :
5210 Set/Sets per Month 15"High-resolution Color LED Screen
Price :
$320.00 - $427.00/Sets
Certification :
CE,ISO13485
MOQ :
1pc
Payment Terms :
T/T, Western Union,Payoneer
Delivery Time :
about 10 days
Power Source :
Electric
Warranty :
1 Year
After-sale Service :
Online technical support
Power Supply Mode :
Plug-in
Material :
Metal, Plastic
Shelf Life :
1years
Quality Certification :
ce
Instrument classification :
Class I
Safety standard :
None
Type :
Pathological Analysis Equipments
Sampling rate :
32000Hz (1ms)
Frequency Response :
0.01 ~ 350Hz
Time Constant :
≥ 3.2s
Paper Speed :
5, 6.25, 12.5, 25, 50 mm/s
Sensitivity :
2.5, 5, 10, 20, Auto mm/mV±2%
Paper Size :
210/215mm*20m thermal folding paper
A/D shift :
24 bit
Input Mode :
Floating input
CMRR :
≥ 120dB
Description
Product Description

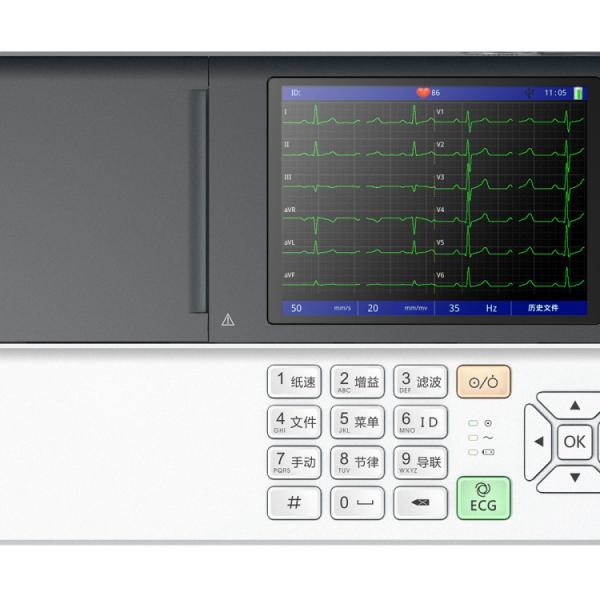

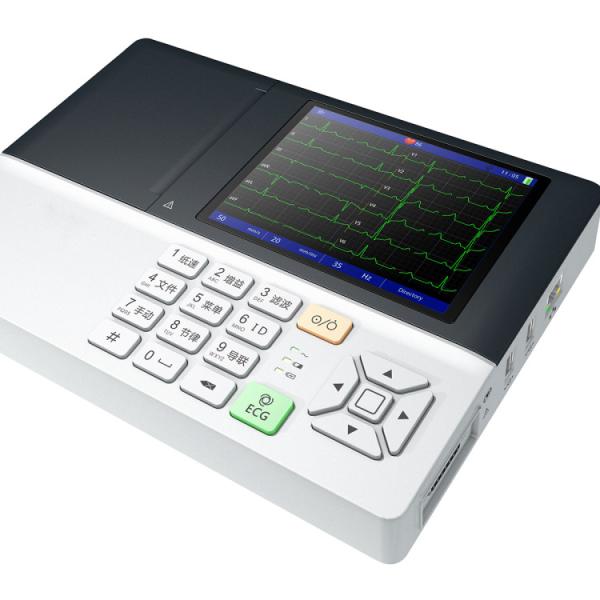

Full Digital Eighteen Channel ECG Machine /200 Data Storage Electrocardiograph

Advanced Function:
External laser printer to output the A4 report
Scanner, card readers and other patient information input devices
Wireless WiFi function
Optional advanced analysis of ECG diagnosis, including ECG Vector analysis, time Vector

analysis, Ventricular Late Potentials analysis, Heart Rate Variability analys is, QT

dispersion analysis, Spectrum ECG analysis, High Frequency ECG analysis
GLASGOW ECG Algorithm can make precise diagnosis according to patient age,

gender, racial taking medicine history etc.,especially for AMI, Ventricular

Fibrillati on, Ventricular Tachycardia, quarterly Bradycardia, malignant

arrhythmia, etc.

Physical Specification

Monitor:
15"High-resolution Color LED Screen

Electrical Power:
AC: 100V-240V, 50Hz/60Hz
DC: Built-in rechargeable battery
Data Storage: Max. 1000 sets; support SD card, USB

Environmental Conditions:
Transportation Temperature: -20℃~+50℃

Storage Temperature:-20℃~+50℃
Relative Humidity:10%~95%
Atmospheric Pressure:50kPa~106kPa

Operation Temperature:5℃~+40℃
Relative Humidity:25%~80%
Atmospheric Pressure:70kPa~106kPa

System Inputs & Outputs
RS-232/ USB2.0/ RJ-45/ SD Interface

Full Digital Eighteen Channel ECG Machine / Medical 200 ECG Data Storage Electrocardiograph
Full Digital Eighteen Channel ECG Machine / Medical 200 ECG Data Storage Electrocardiograph
Full Digital Eighteen Channel ECG Machine / Medical 200 ECG Data Storage Electrocardiograph
Full Digital Eighteen Channel ECG Machine / Medical 200 ECG Data Storage Electrocardiograph
Full Digital Eighteen Channel ECG Machine / Medical 200 ECG Data Storage Electrocardiograph
Full Digital Eighteen Channel ECG Machine / Medical 200 ECG Data Storage Electrocardiograph
Detailed Images

Standard Package

MSLEC09 ECG Machine (with battery)
Patient Cable
Chest Electrodes
Limb Electrodes
Thermal Printing Paper
Power Cord
Grounding Wire
User Manual
Paper Axis
Other accessories

Optional Accessories

Series Electrodes
Thermal Printing Paper
SD Memory Card
Lithium Battery
Workstation Software
Workstation Trolley
Laser/Inkjet Printer
Paper Axis
Scanner
Card Reader
