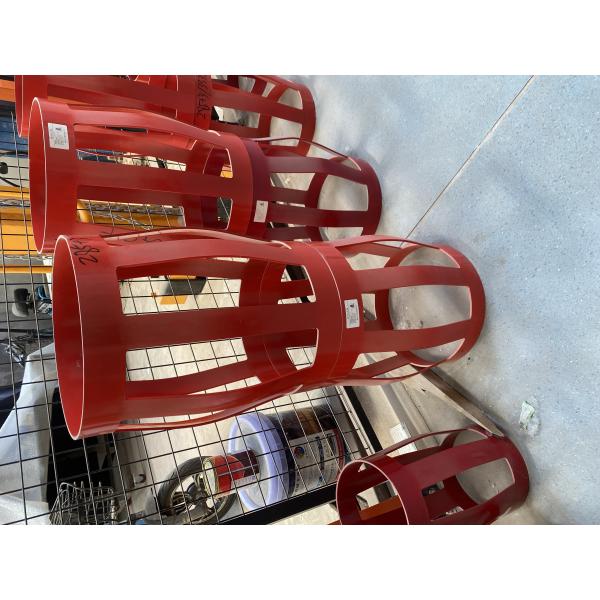

Api 10d Rigid Hinged Casing Centralizers For Oil Casing Cementing
Api 10d Rigid Hinged Casing Centralizers For Oil Casing Cementing
Specifications
Brand Name :
ZS
Model Number :
5-1/2"X8-1/2"to20"X26"
Certification :
API 11AX
Place of Origin :
China,Henan
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000sets/month
Delivery Time :
15 work days
Packaging Details :
Metal or wooden case
Type :
Bow Type Spring Centralizer
Material :
Stainless steel
central multimedia :
central machinery parts
central hydraulics scissor lift :
toyota central locking system
Weight (KG) :
10
Use :
Well Drilling
Color :
Customized
Description

API 10D Oilfield Cementing tool bow spring casing centralizer

Product Description

Premium quality Bows are made of special alloy steel and hot formed in totally controlled heat treatment plant to achieve the uniform hardness all over.

Spec and performance index of bow spring casing centralizer meet API Spec 10D.

The casing centralizer is connected by pin when operation, the unfolded centralizer can be stacked flatly for convenient storage and transportation.

Api 10d Rigid Hinged Casing Centralizers For Oil Casing Cementing

Technical Parameter
Spring Casing Centralizer Size(In) OD(mm) IN(mm) Height(mm) Max Start-up Force(N) Min Reset Force(N)
20" 680 512 575 ≤16725 ≥8363
13-3/8" 455 342 560 ≤10853 ≥5427
9-5/8"*12-1/4" 335 248 560 ≤7117 ≥7117
7" 235 181 560 ≤4626 ≥4626
6-5/8"*8-3/4" 238 171 560 ≤4270 ≥4270
5-1/2”*8-1/2” 235 142 560 ≤2758 ≥2758
Rigid Centralizer 13-3/8" 437 344 180
9-5/8"*12-1/4" 305 248 120
7" 210 182 120
6-5/8"*8-3/4" 215 171 120
5-1/2"*8-1/2" 210 142 120

Semi-rigid Centralizer Single Bow Spring Centralizer Double-bow Spring Centralizer
Integral Centralizer Rigid Centralizer Rigid Roller Centralizer
Our Services

All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.

· Zhongshi Group is the API certification enterprise for 15 years;

· ISO9001 quality management system;

· We provide on-site technical service,no matter when and where.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 1-5days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance.
