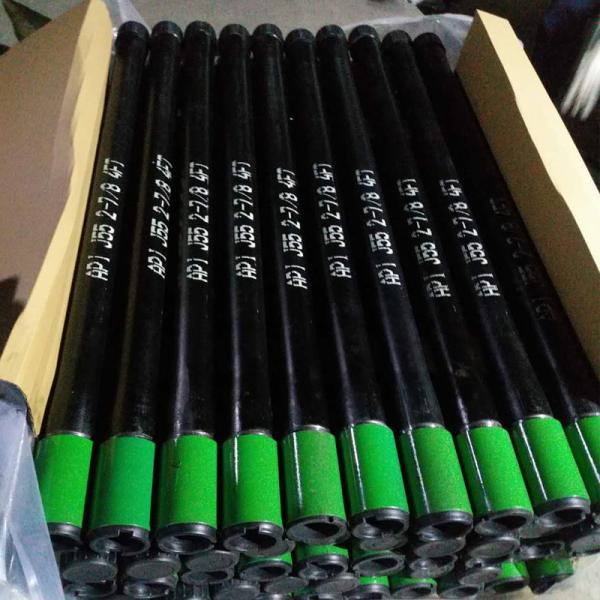

Seamless Steel Casing Pipes Tubing Pipes Pup Joints For Oil Drill
Seamless Steel Casing Pipes Tubing Pipes Pup Joints For Oil Drill
Specifications
Brand Name :
zhongshi
Model Number :
pup joint
Certification :
API 5CT ,ISO ,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T
Delivery Time :
2 weeks
Packaging Details :
exported packing
Material :
alloy steel,J55 K55 N80 L80 P110
Product name :
API 5ct casing and tubing pup joint
Standard :
API, ISO,QHSE
Thread :
EUE , NUE
Thickness :
2.87-30mm,4.24--20.62mm
Size :
2-3/8-----3-1/2
Description



Product Description:

Casing pipe is most often used in underground construction projects to encase or protect utility lines from being damaged.
Once a well has been drilled, if it is to become a production well, the well must undergo completion. While drilling a well cuts
through the rock formations and allows drilling engineers to reach the reservoir below, the raw sides of the well cannot support
themselves. Similar to the bones of your spine protecting the spinal cord, casing is tubing that is set inside the drilled well to
protect and support the wellstream.

1.Specification range:OD: 114.30 MM - 508.00 MM(4 1/2"--20") WT: 5.21MM-16.13MM(9.50PPF--133.00PPF)
2. Materials: H40, J55, K55, N80-1, N80-Q, L80-1,L80-9Cr, L80-13Cr, P110, Q125 etc
3. Executive standards: API 5CT, GB, ISO11960, GOST
4. Thread connection: BTC, STC,LTC,V
5. Length: R1, R2, R3
6. Testing: NDT etc related rules of API 5CT and 5B
7:Type:seamless pipe


Technical Parameter:

Diameters: 1.9" through 4.5" nominal O.D.
Weights: Standard or Heavy Wall
Lengths: 2, 3, 4, 6, 8, 10, 12 ft. Standard
(Other lengths available upon request)
Grades: J-55, N-80, N-80 Q & T, L-80, P-110
Connections: EUE, NUE, Buttress

Size

Type of Thread

O.D*L (mm)

Weight(kg)
2-3/8" NUE 73.02*107.95 1.28
2-3/8" EUE 77.80*132.82 1.55
2-7/8" NUE 88.90*130.18 2.34
2-7/8" EUE 93.17*133.35 2.40
3-1/2" NUE 107.95*142.88 3.71
3-1/2" EUE 114.30*146.05 4.10
4" NUE 120.65*146.05 4.35
4" EUE 127.00*152.40 4.82
4-1/2" NUE 132.08*155.58 4.89
4-1/2" EUE 141.30*158.75 6.05
