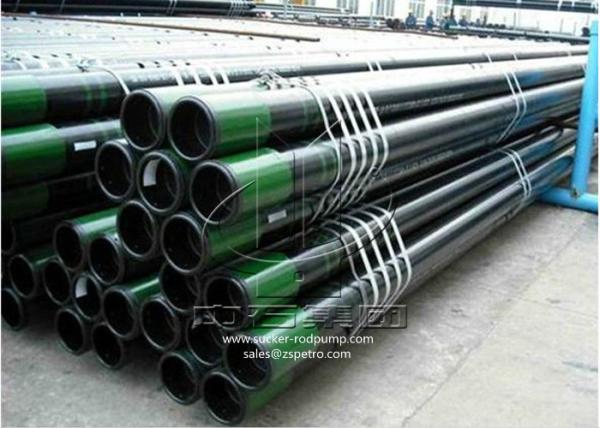

Oil Production 13Cr Hot Rolled API 5CT Well tubing Pipe
Oil Production 13Cr Hot Rolled API 5CT Well tubing Pipe
Specifications
Brand Name :
Zhongshi
Model Number :
1.05"-4 1/2"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
Be bundled by steel strap
Steel grade :
J55, K55, L80, N80, P110, P110-13Cr
Standard :
API 5CT, ISO, QHSE
Technique :
Hot rolled
Alloy or not :
Alloy steel
Secondary or not :
Non-secondary
Section of shape :
Round
Description

API 5CT Standard casing and tubing for oil production extraction

Description for 13Cr tubing pipe:

Tubing is a pipe used for the transportation of crude oil and natural gas from oil or gas layer to the

surface after drilling is completed. It is made to withstand the pressure generated from the extraction

process.

Tubing is manufactured in the same way as casing, except that an additional process known as

"upsetting" is applied to thicken the pipes.

Features:

1. Seamless oil pipe

2. Hot-rolling pipe

3. Size OD: 1.05”-4 1/2”

Technical specification:

API 5CT standard casing and tubing
Steel grade J55,K55,N80, N80Q, L80, P110
Processing method: Hot rolled
Outside Diameter: 26.67-508mm
Wall thickness: 2.87-22.22mm
Length: R1, R2, R3
Standard: API 5CT
Specification: O.D: 1.05" - 20" (inch)
WT: 4.6PPF,4.7PPF,5.8PPF,5.95PPF,6.4PPF,6.5PPF,7.8PPF,7.9PPF,etc.

Chemical Compositions(%):

Standard Steel Grade Chemical Composition (%)
C Si Mn P S Cr Ni Cu Mo V Als
API 5CT J55

0.34~

0.39

0.20~

0.35

1.25~

1.50

 ≤0.020 ≤0.015 ≤0.15 ≤0.20 ≤0.20 /

/

 ≤0.020
API 5CT K55

0.34~

0.39

0.20~

0.35

1.25~

1.50

 ≤0.020 ≤0.015 ≤0.15 ≤0.20 ≤0.20 / / ≤0.020
API 5CT N80

0.34~

0.38

0.20~

0.35

1.45~

1.70

 ≤0.020 ≤0.015 ≤0.15 / / /

0.11~

0.16

 ≤0.020
API 5CT L80

0.15~

0.22

 ≤1.00

0.25~

1.00

 ≤0.020 ≤0.010

12.0~

14.0

 ≤0.20 ≤0.20 / / ≤0.020
API 5CT P110

0.26~

0.35

0.17~

0.37

0.40~

0.70

 ≤0.020 ≤0.010

0.80~

1.10

 ≤0.20 ≤0.20

0.15~

0.25

 ≤0.08 ≤0.020

Mechanical properties:

Standard Steel grade Tensil Strength(Mpa) Yeild Strength(Mpa) Elongation(%)
API 5CT J55 ≥517 379~552 0.5%
API 5CT K55 ≥655 379~552 0.5%
API 5CT N80 ≥689 552~758 0.5%
API 5CT L80 ≥655 552~655 0.5%
API 5CT P110 ≥862 758~965 0.6%
