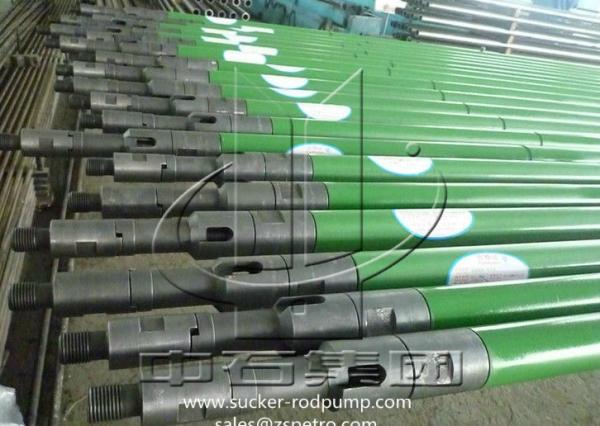

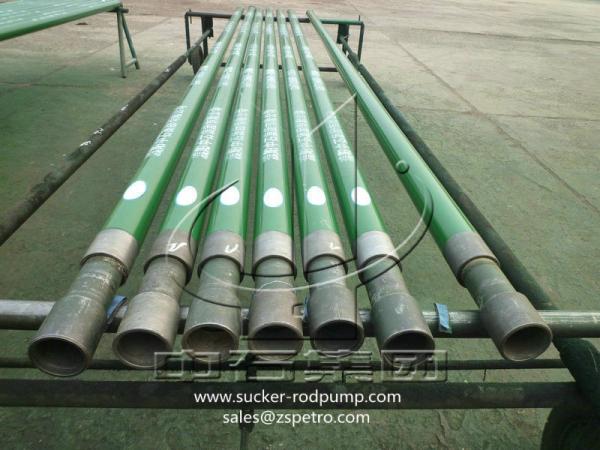

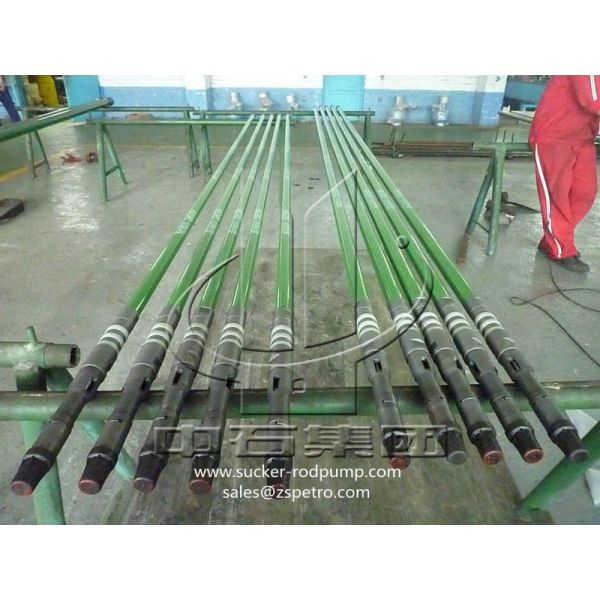

API 11Ax Approved RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Sucker Rod Pump
API 11Ax Approved RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Sucker Rod Pump
API 11Ax Approved RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Sucker Rod Pump
API 11Ax Approved RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Sucker Rod Pump
API 11Ax Approved RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Sucker Rod Pump
API 11Ax Approved RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Sucker Rod Pump
Specifications
Brand Name :
Zhongshi
Model Number :
sucker rod
Certification :
API ,ISO ,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs
Delivery Time :
2weeks
Packaging Details :
exported packing
Product Name :
RHBM Pump
Supplier :
Puyang Zhongshi Group
Certificates :
API
Package :
Bundle as per API 11B standard
Usage :
Oil Extraction
Type :
Sucker rod
Advantage :
High Performance
Manufacture Place :
Hebei Province
Description

API 11Ax Approved RHBM,Rod, Heavy Wall Barrel, Mechanical Bottom Anchor Sucker Rod Pump

Product description

Rod pump is equipped with a support joint, support joint connected on the tubing string, and it is together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint by external force, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.

Technical parameter list

Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE (in) Sucker rod size
15-106RHBM Ø26.99 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 1.9

CYJ16

CYJ19
20-125RHBM Ø31.75 2-3/8


Features


It is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
Under operation easy to operate, economical and practical, it can reduce oil field operation cost by more than 30%.
It can be designed according to the customer’s well.

Mechanical Propertie

Rod pump are suspended inside the tubing with the support joint ,it is suitable for low temperature of deep well and deviated well drilling, good corrosion resistant effect. easy to operate, economical and practical, it can reduce oil field operation cost by more than 50%.

It can be designed according to the customer’s well.
