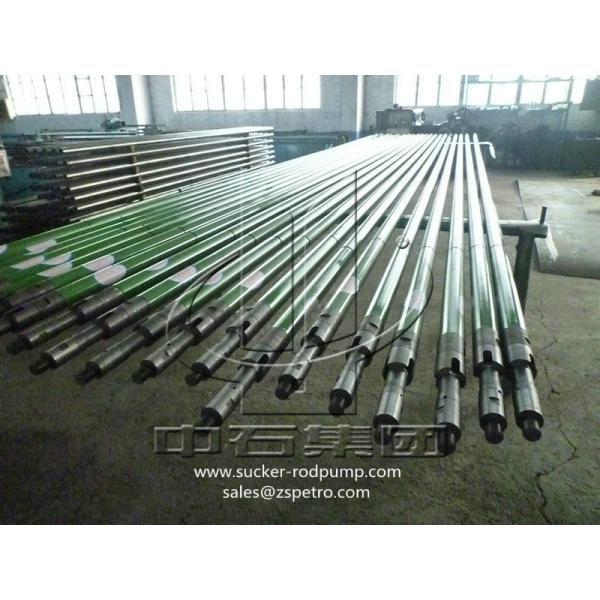

Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump
Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump
Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump
Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump
Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump
Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump
Specifications
Brand Name :
Zhongshi
Model Number :
sucker rod
Certification :
API ,ISO ,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, T/T, D/P, Western Union
Supply Ability :
1000pcs
Delivery Time :
2weeks
Packaging Details :
exported packing
Steel Garde :
D,KD,HY,K,HL
Product Name :
Sucker Rod Pump
Manufacturer :
Puyang Zhongshi Group
Standard :
API
Usage :
Oil Extraction
Package :
Bundle as per API 11B standard
Advantage :
High quality
Description

Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump

Product description:

Rod pump is equipped with two support joints(upper cup anchor point and down mechanical anchor point ), support joints connection on the tubing string, and together with the tubing string down to the bottom. Plunger assembly is connected on the rod string and together with the whole pump down to support joint position, pump is fixed within the support joint, plunger assembly is together with the sucker rod string up and down reciprocating movement to achieve pumping work.
When inspection and maintenance pump,it need not to put out of the tubing string, only through rod string together put out of the whole pump, operation is simple.

Technical parameter list:

Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in) Sucker rod size
15-106RHBM/AC Ø26.99 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 1.9”

CYJ16

CYJ19
20-125RHBM/AC Ø31.75 2-3/8”
25-150RHBM/AC Ø38.10 2-7/8”
25-175RHBM/AC Ø44.45 2-7/8”
30-225RHBM/AC Ø57.15 3-1/2”

Features:

1. Sucker rod structure can be injected with hot oil, vapor. It can also be used for running heating cable.

2. The threaded joint is designed with bearing surface to make the joint more reliable.

3. High rigidity to bear large torque.

4. Connection type: coupling connection and direct connection.

5. Metal pallet package for saving space and convenient to transport.

6. There are plastic caps to protect thread of sucker rod.

Puyang Zhongshi Group Manufactured Oil Extraction Double Seal API 11Ax Approved Sucker Rod Pump
