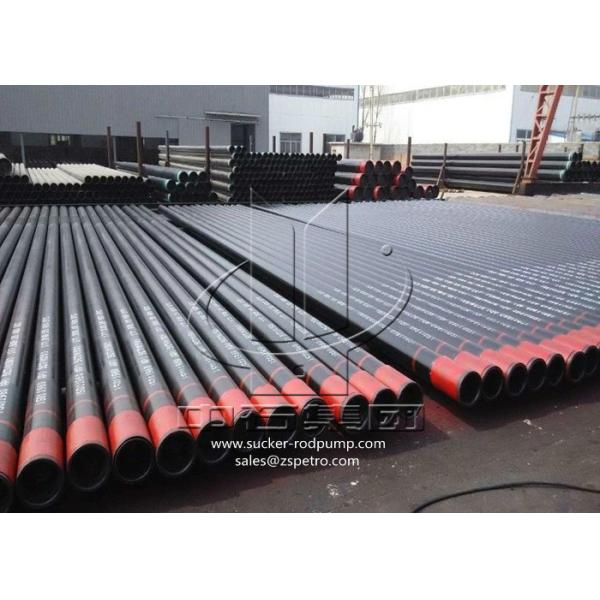

R2 Length 9 5/8 API 5ct J55 Steel Well Casing Pipe
R2 Length 9 5/8 API 5ct J55 Steel Well Casing Pipe
Specifications
Brand Name :
Zhongshi
Model Number :
1.05"-4 1/2"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
One metric ton
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Production Class :
API 5CT
Connections :
EU, NU, premium connections
Structure :
Seamless
Length :
R2
Technique :
Hot rolled
Alloy steel or not :
Alloy steel
Application :
Oil drilling
Model Number: :
1.9" - 20"
Description

Gas oil well pipe 9 5/8" API 5ct J55 steel casing pipe OCTG

Product Description:

Oil casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells or

wellbore. It is inserted into the well bore and cemented in the well, protect both subsurface formations and

the wellbore from collapsing, allow drilling fluid to circulate in it and extraction to take place.

Feature:

1. O.D: 1.9” ~20”

2. Wall thickness: 4.83 to 16.13mm

3. Thread types: EUE, NUE, STC, LTC, BTC , TOP,NEW ect.

4. Steel grades: J55, N80, K55, P110 ,AISI 1020 ect.

5. Lengths: 1FT, 2FT, 3FT, 4FT, 5FT, 6FT, 7FT, 8FT, 9FT, 10FT ,R1,R2,R3.

6. Standards: API 5CT

R2 Length 9 5/8

Technical Specification:

Product Name OCTG gas oil well pipe
Usage: Tubing is used to extracting petroleum and natural gas from a well. Casing serves as wells of a well.
Production Type : Seamless steel pipe, welding steel pipe
Parts: Casing, coupling ,thread protector
Size Range(OD): 4 1/2”-20”
Length range : R1, R2, R3
Standard: API 5CT
Material: H40, M65,J55, K55, N80,L80, L90,C90,T95,P110
API type thread: STC,LTC,BTC
Surface Treatment: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement.
Testing: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Customized Size: Non-standard size can be customized as per customer's request.

Mechanical properties:

Standard Steel grade Tensil Strength(Mpa) Yeild Strength(Mpa) Elongation(%)
API 5CT J55 ≥517 379~552 0.5%
API 5CT K55 ≥655 379~552 0.5%
API 5CT N80 ≥689 552~758 0.5%
API 5CT L80 ≥655 552~655 0.5%
API 5CT P110 ≥862 758~965 0.6%
