API Certified Oilfield Pump Parts Small Parts Seating Nipple
API Certified Oilfield Pump Parts Small Parts Seating Nipple
Specifications
Brand Name :
Zhongshi
Model Number :
ZS
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
10000pcs/month
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Product Name :
Pump parts
Coating type :
Spray metal and chrome plated in usual
Standard :
API 11AX
Code :
As API specified
Material of two ends :
As requirements
Material :
45# steel or alloy steel
Production :
Standard or as requirements
API 11AX code :
0061
Description

API Certified Small Parts Seating Nipple Oilfield Pump Parts

Small Parts in Rod Pump Description

There are seven major components for downhole rod pumps: standing and traveling valves, plunger, barrel, seating assembly, pull tube or valve rod (for insert pump), and the fittings that hold the assembled pump together. The most common of these components and the final types of assembled pumps are covered by American Petroleum Institute (API) Specification 11AX.


Technical Specifications of Pump Plungers

Model Part No. API No. Mark
P21A P21A-106(XX)-L P21-106 Plunger, Pin End,
One Piece
P21A-125(XX)-L P21-125
P21A-150(XX)-L P21-150
P21A-175(XX)-L P21-175
P21A-200(XX)-L P21-200
P21A-225(XX)-L P21-225
P21A-250(XX)-L P21-250
P21I P21I-106(XX)-L P21-106 Plunger, Pin End,
One Piece, inclined plane
P21I-125(XX)-L P21-125
P21I-150(XX)-L P21-150
P21I-175(XX)-L P21-175
P21I-200(XX)-L P21-200
P21I-225(XX)-L P21-225
P21I-250(XX)-L P21-250
P21I-275(XX)-L P21-275
P21I-325(XX)-L —
P21I-375(XX)-L P21-375
P22 P22-125(XX)-L P22-125 Plunger,
Assembled
P22-150(XX)-L P22-150
P22-175(XX)-L P22-175
P22-200(XX)-L P22-200
P22-225(XX)-L P22-225
P22-250(XX)-L P22-250
P22-275(XX)-L P22-275
P23 P23-175(XX)-L P23-175 Plunger,
Box End
P23-225(XX)-L P23-225
P23-275(XX)-L P23-275
P23-375(XX)-L P23-375


Materials selection

API Spec. 11AX was modified to add not only new sizes and types of pumps with new quality, inspection, and tolerance requirements, but also standardized, widely used pump-component materials. Various material descriptions, their API identification symbol, surface condition, base core hardness, base material, and base-material minimum yield strength for plated barrels, are shown in Table A of Spec. 11AX. Similar tables in Spec. 11AX (B through I) are incorporated for case-hardened barrels, nonhardened barrels, balls and seats, cages, pull tubes, valve rods, fittings, seating cups, spray-metal plungers, and plated plungers. These changes have incorporated the prior information in API RP 11AR[2] and the NACE International MR 01-76[3] for materials to be used in most production environments.

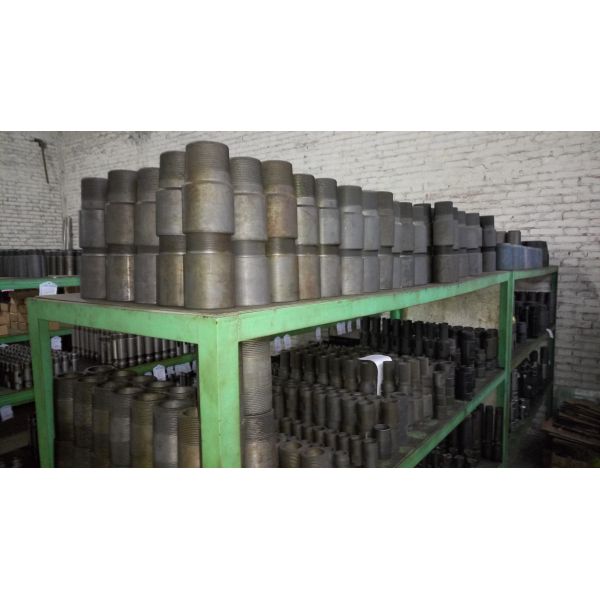

Photo:

API Certified Oilfield Pump Parts Small Parts Seating Nipple
