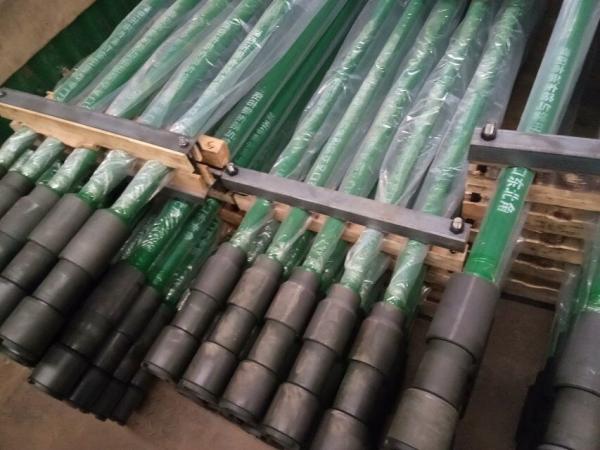

Oilfield Rod Insert Pump Corrosion Resistant Stroke 1.2ft Sucker Rod Pump
Oilfield Rod Insert Pump Corrosion Resistant Stroke 1.2ft Sucker Rod Pump
Specifications
Brand Name :
Zhongshi
Model Number :
Tubing pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Standard :
API 11AX
Application :
Oil production from oil well
Type :
RHAC, RHBM, RHBC, RWAM, RWAC, RWBM
Thin wall type :
RWAM, RWAC, RWBM
Plunger material :
Medium carbon steel
Corrosion resistance :
Normal well conditions
Description

Oilfield Corrosion Resistant Sucker Rod Pumps

Corrosion Resisitant sucker rod pump description

Heavy wall and thin wall sucker rod pumps are equipped with a seating nipple(there are two seating nipples in API-RHBM-AC) , seating nipple connection on the tubing string, down to the bottom of the well with the tubing string. Plunger assembly connection on the sucker rod string and with the pump overall down to seating nipple position together , pump with fixed inside the seating nipple , Plunger assembly with the sucker rod string up and down reciprocating movement to achieve pumping work.
if the pump appeared quality problem, need not put forward the tubing string, only need put the whole pump forward well through the sucker rod string together , operation is simple.

Technical parameter list:

Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20-125RWBM Ø31.75 2.1-10.4 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
25-150RWBM Ø38.10 2-7/8”
25-175RWBM Ø44.45 2-7/8”
30-225RWBM Ø57.15 3-1/2”

Features


1. It is suitable for corrosion and small amount of sand and gas, deep Wells, such as complex well conditions, the use of safe, stable performance and wide application.
2. Under operation easy to operate, economical and practical, it can reduce oil field operation cost by more than 30%.
3. Heavy walled and thin walled

Mechanical Propertie

Rod pump are suspended inside the tubing with the support joint ,it is suitable for low temperature of deep well and deviated well drilling, good corrosion resistant effect. easy to operate, economical and practical, it can reduce oil field operation cost by more than 50%.
