API 11AX 0061 Oilfield Pump Parts Pin Ends Spray Metal Coating Pump Plunger
API 11AX 0061 Oilfield Pump Parts Pin Ends Spray Metal Coating Pump Plunger
Specifications
Brand Name :
Zhongshi
Model Number :
ZS
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
10000pcs/month
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Material :
45# steel
Surface coating :
Spray metal
API certificate No. :
11AX-0061
Parts code :
P
Type :
Grooved or not
Thread type :
Pin threads
Description

Pin Ends Spray Metal Coating Plungers Oilfield Pump Parts

Pin Ends Pump Plungers Description

Pump plunger moves up and down in the rod pump to extract oil from the oilwell, which is a key part.

Coating type for plunger: spray metal and chrome plated. Spray metal is more popular.

Threads are usual outer threads, that is pin end.

Technical Specifications

Part code Specification API code. description
P21A P21A-106(XX)-L P21-106 Plunger, Pin End,
One Piece
P21A-125(XX)-L P21-125
P21A-150(XX)-L P21-150
P21A-175(XX)-L P21-175
P21A-200(XX)-L P21-200
P21A-225(XX)-L P21-225
P21A-250(XX)-L P21-250
P21I P21I-106(XX)-L P21-106 Plunger, Pin End,
One Piece, inclined plane
P21I-125(XX)-L P21-125
P21I-150(XX)-L P21-150
P21I-175(XX)-L P21-175
P21I-200(XX)-L P21-200
P21I-225(XX)-L P21-225
P21I-250(XX)-L P21-250
P21I-275(XX)-L P21-275
P21I-325(XX)-L —
P21I-375(XX)-L P21-375
P22 P22-125(XX)-L P22-125 Plunger,
Assembled
P22-150(XX)-L P22-150
P22-175(XX)-L P22-175
P22-200(XX)-L P22-200
P22-225(XX)-L P22-225
P22-250(XX)-L P22-250
P22-275(XX)-L P22-275
P23 P23-175(XX)-L P23-175 Plunger,
Box End
P23-225(XX)-L P23-225
P23-275(XX)-L P23-275
P23-375(XX)-L P23-375


Note:

1)“XX” is Material identification symbol;

2)L is standard strength for plunger; or can be as requirements

3)Two ends are monel connector or other alloy steel;

4) Annular grooves on the surface is according to user needs.

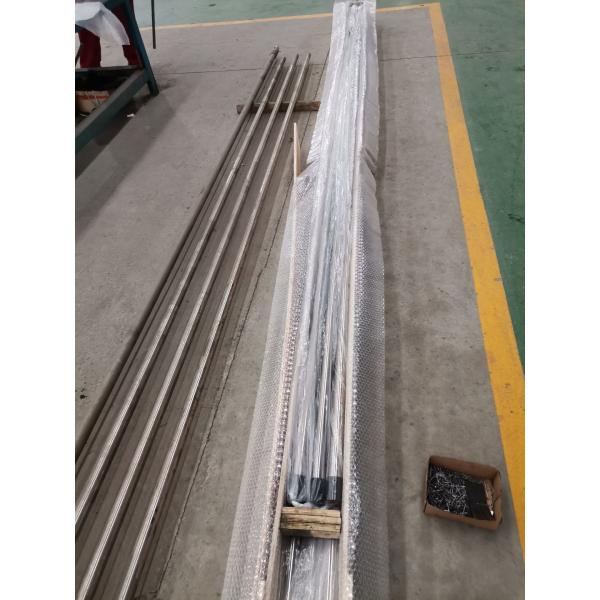

Photo:

API 11AX 0061 Oilfield Pump Parts Pin Ends Spray Metal Coating Pump Plunger
