Chrome Plated API 11AX High Pressure Pump Plunger AISI 1045 Steel
Chrome Plated API 11AX High Pressure Pump Plunger AISI 1045 Steel
Specifications
Brand Name :
Zhongshi
Model Number :
ZS
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
10000pcs/month
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Coating type :
Chrome plated
Application :
Pump parts
Standard or not :
Yes
Material :
AISI 1045 steel
Parts code :
P
Standard :
API 11AX
Description

Chrome Plated Pump Plungers Oilfield Pump Parts

Chrome Plated Plungers Description

Pump plunger is a key part of the API sucker rod pump. It moves up and down in the pump to extract oil from the oilwell.

There are spray metal plunger and the chrome plated plunger

Technical Specifications

Model Part No. API code. Describe
P21A P21A-106(XX)-L P21-106 Plunger, Pin End,
One Piece
P21A-125(XX)-L P21-125
P21A-150(XX)-L P21-150
P21A-175(XX)-L P21-175
P21A-200(XX)-L P21-200
P21A-225(XX)-L P21-225
P21A-250(XX)-L P21-250
P21I P21I-106(XX)-L P21-106 Plunger, Pin End,
One Piece, inclined plane
P21I-125(XX)-L P21-125
P21I-150(XX)-L P21-150
P21I-175(XX)-L P21-175
P21I-200(XX)-L P21-200
P21I-225(XX)-L P21-225
P21I-250(XX)-L P21-250
P21I-275(XX)-L P21-275
P21I-325(XX)-L —
P21I-375(XX)-L P21-375
P22 P22-125(XX)-L P22-125 Plunger,
Assembled
P22-150(XX)-L P22-150
P22-175(XX)-L P22-175
P22-200(XX)-L P22-200
P22-225(XX)-L P22-225
P22-250(XX)-L P22-250
P22-275(XX)-L P22-275
P23 P23-175(XX)-L P23-175 Plunger,
Box End
P23-225(XX)-L P23-225
P23-275(XX)-L P23-275
P23-375(XX)-L P23-375


Code explaination to the above:

1)“XX” represent Material identification symbol;

2)L represent standard strength for plunger;

3)The outer surface of the plunger can be processed with annular grooves based on the well conditions.

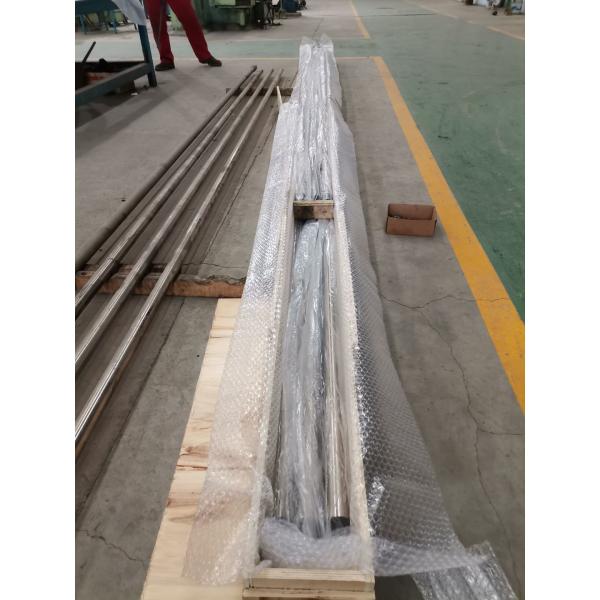

Photo:

Chrome Plated API 11AX High Pressure Pump Plunger AISI 1045 Steel
