1045 Steel Tungsten Carbide YN6 HRA 89.5 Valve Ball Seat
1045 Steel Tungsten Carbide YN6 HRA 89.5 Valve Ball Seat
Specifications
Brand Name :
ZS
Model Number :
ZS
Certification :
API，ISO，QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Sets per Month
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Product Name :
valve ball and seat for sucker rod pumps
Material :
1045 steel
Application :
Insert pump
Color :
Slivery
Manufacturer :
Puyang Zhongshi Group
Payment :
L/C, bank transfer
Description

1045 Steel Tungsten Carbide Valve Ball And Seat

Product Description

We provide different material and structure of the valve cage according to different well conditions. For different material of the valve cage, we have different heat treatment process, to ensure the safety of the use and its mechanical properties.

We can produce all pump accessories, at the same time, also undertake the processing of other equipment accessories.

Technical Specifications

Nominal diameter

mm

Extension

nipple

length

m

Length

series of the

plunger

m

Stroke range

of the

plunger

m

O.D. of the

connecting

oil pipe

mm

Diameter of

the connecting

pumping rod

mm

Pump constant

m3/d

Max. O.D.

mm
28

0.3

0.6

0.9

0.6

0.9

1.2

1.5

 0.6-6.0 60.3,73.0 16 0.916 88.9
32 60.3,73.0 16 1.140 88.9
38 60.3,73.0 16/19 1.642 88.9
44 60.3,73.0 19 2.235 88.9
57 73.0 19 3.694 88.9
70 88.9 22 5.518 107
83 101.6 22 7.707 114
95 114.3 25 10.261 121

Feature : high compressive strength, hardness and resistance against wear, and the ability to withstand shock and also impact

Usage: making of valves of sock rod pumps

Other usage : flow meters, ball screws and linear bearings,ballizing, gauging and in ball pens

Grade: YG6,YN6, YTR

HRA: 89.5-91.0

TRS(≥N/mm2):1800-2200

Magnetic : Can be done according to customer’s requirements

Size : 1/8’’(Φ3.175mm)-3-3/4’’(Φ95.25mm)

Material performance table

CODE INSTRUCTION HARDNESS MATERIAL
A1 Stainless steel Ball: HRC 58-65 UNS 41000–UNS 44000
Seat: HRC 52-56 9Cr18Mo & 6 Cr18Mo
B1 Cobalt alloy casting Ball: HRC 56-63 Cobalt, chromium and tungsten alloy
Seat: HRC 50-56
B2 Cobalt alloy, powder metallurgy Ball: HRC 53-60 Cobalt, chromium and tungsten alloy
Seat: HRC 51-57
C1 Tungsten carbide Ball: HRA 88-89 Tungsten with cobalt adhesive
Seat: HRA 88-89.5
C3 Titanium carbon compounds Ball: HRA 89-90.5 Tungsten and titanium with cobalt adhesive carbon compounds
Seat: HRA 89-90.5

Pictures

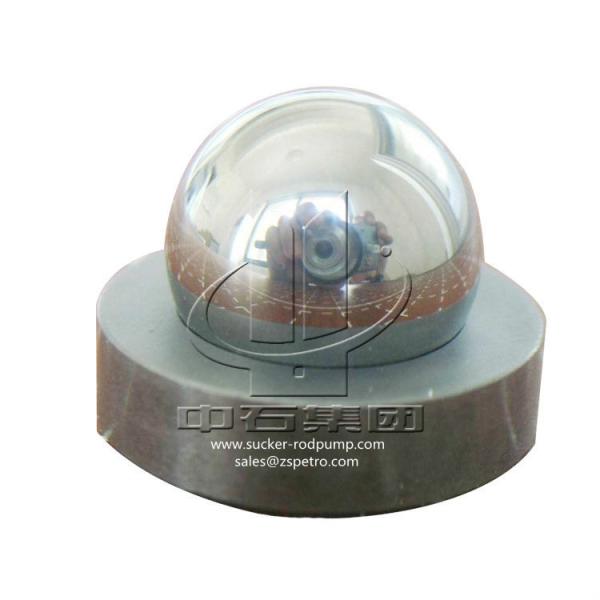

1045 Steel Tungsten Carbide YN6 HRA 89.5 Valve Ball Seat
