API Cemented Carbide For Sucker Rod Pumps Tungsten Carbide Ball And Seat
API Cemented Carbide For Sucker Rod Pumps Tungsten Carbide Ball And Seat
API Cemented Carbide For Sucker Rod Pumps Tungsten Carbide Ball And Seat
API Cemented Carbide For Sucker Rod Pumps Tungsten Carbide Ball And Seat
Specifications
Brand Name :
Zhongshi
Certification :
API，ISO，QHSE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T, D/P, D/A, L/C, Western Union
Supply Ability :
1000 Sets per Month
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Model Number :
ZS
Power :
Machanical Energy
Material :
Tungsten carbide
Application :
Insert pump
Product name :
Valve ball and seat
Warranty :
12 6 Months
Color :
Slivery
Description

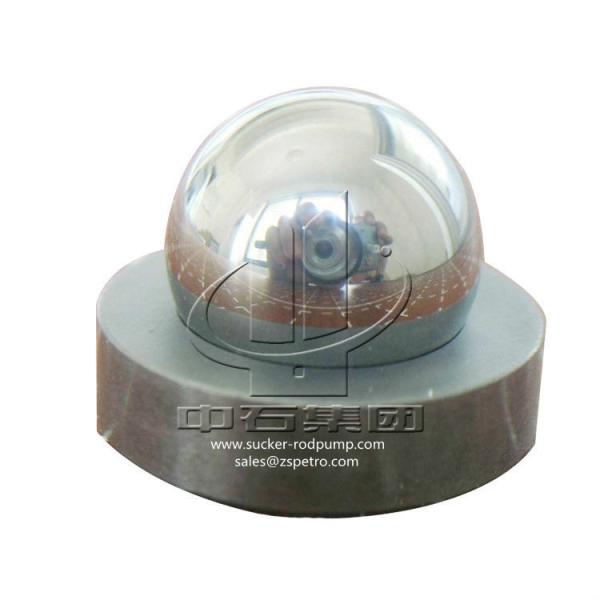

API cemented carbide /tungsten carbide valve ball and seat for sucker rod pumps

Product Description

Raw material quality: Each batch materials have been recorded and can be traced. Besides, each batch materials have be sample inspected.

Finished products quality: 100% full inspected.

The physical and chemical properties of our products are higher than the industry standard ,GB.

We have strong development capability , can provide the best solution to customer according to the requirements of working condition ,such as raw material choosing.

Quality control

Advanced quality inspect equipment.

2 times sample inspect for raw material . 100% full inspect for finished products.

Technical Specifications

Dimensional Symbol V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
Ball-D(mm)

15.88

(0.625in)

19.05

(0.75in)

23.83

(0.938in)

28.58

(1.125in)

31.75

(1.25in)

34.93

(1.375in)

42.88

(1.688in)

57.15

(2.25in)
Seat-ID(mm)

11.68

(0.46in)

13.97

(0.55in)

17.02

(0.67in)

20.96

(0.825in)

24.38

(0.96in)

26.92

(1.06in)

33.27

(1.31in)

43.18

(1.7in)
Seat-OD(mm)

20.14

(0.793in)

23.32

(0.918in)

29.67

(1.168in)

35.26

(1.388in)

37.54

(1.478in)

43.69

(1.72in)

51.05

(2.01in)

78.03

(3.072in)
Seat-H(mm)

0.500

(12.70in)

0.500

(12.70in)

0.500

(12.70in)

0.500

(12.70in)

0.500

(12.70in)

0.500

(12.70in)

0.500

(12.70in)

0.750

(19.05in)

API No. V11-106 V11-125 V11-150 V11-175 V11-200 V11-225 V11-250 V11-375
Seat Size 1-1/16" 1-1/4" 1-1/2" 1-3/4" 2" 2-1/4" 2-3/4" 3-3/4"
Ball Size 5/8" 3/4" 15/16" 1-1/8" 1-1/4" 1-3/8"

1-11/16"

 2-1/4"

Pictures

API Cemented Carbide For Sucker Rod Pumps Tungsten Carbide Ball And Seat
