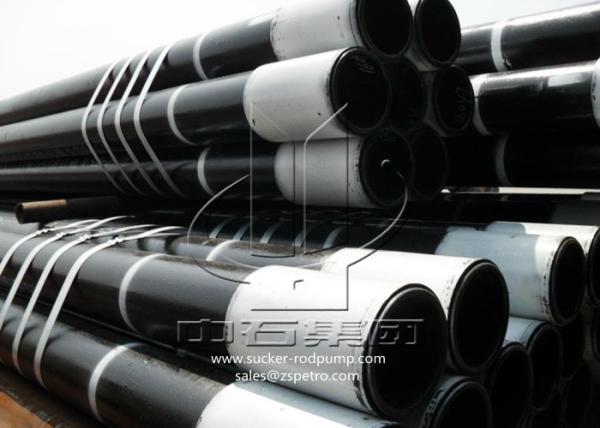

Hot Rolled Seamless Casing Pipe For Oil Well Drilling Round Section Shape
Hot Rolled Seamless Casing Pipe For Oil Well Drilling Round Section Shape
Specifications
Brand Name :
Zhongshi
Model Number :
4 1/2"-20"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
Be bundled by steel strap
Standard :
API 5CT
OD :
4 1/2"-20"
Section shape :
Round
Length :
R3
Processing :
Hot-rolled
Material :
Alloy steel
Secondary or not :
Non-secondary
Application :
Oil industry
Description
Hot Rolled Seamless Alloy Steel Casing Pipe For Oil Well Drilling


Casing pipe description:

Casing seamless pipe is mainly used for supporting the wall of the well during and after the drilling to

ensure the drilling process and the normal operation of the entire well after completion. The oil casing

pipe is the lifeline for maintaining the operation of the oil well.



Features:

1. Length range R3
2. API 5CT seamless pipe


Technical specification:

Standard API 5CT/ ISO11960
Grade Group.1

H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3,

N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3
Group.2 M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1, C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3
Group.3 P110/PSL.1, P110/PSL.2, P110/PSL.3,
Group.4 Q125/PSL.1, Q125/PSL.2, Q125/PSL.3,
Minimum Order Quantity Negotiable
Outside Diameter Casing 4 1/2 inch to 20 inch or 114.3mm to 508mm
Wall Thickness According to API 5CT Standard
Length Casing R1 (4.88m to 7.62m), R2 (7.62m to 10.36m), R3 (10.36m to 14.63m)
Processing type Seamless
Type of End-Finish Casing P, S, B, L

Mechanical properties:

Standard Steel grade Tensil Strength(Mpa) Yeild Strength(Mpa) Elongation(%)
API 5CT J55 ≥517 379~552 0.5%
API 5CT K55 ≥655 379~552 0.5%
API 5CT N80 ≥689 552~758 0.5%
API 5CT L80 ≥655 552~655 0.5%
API 5CT P110 ≥862 758~965 0.6%
