Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
Specifications
Brand Name :
Zhongshi
Model Number :
TH(B)M
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Machine type :
Petroleum Machinery
Application :
petroleum production
Color :
Required
Type :
Tubing Pump
Certificate :
API 11 ax
Delivery Time: :
Depends on quantity
Description

Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving

Product description

Tubing Pump is also called pipe type pump,the feature is that assemble the outer cylinder liner,the bush and the suction valve well on the ground,and connect at the bottom of the oil,into the wells,then use the sucker rod pump through tubing to put the piston is provided with a discharge valve into the pump.

Technical parameter list

Type Major technical data
Diameter(mm) Barrel Length (m) Stroke Range (m) Length of Extension Pub Joint(m) Thread for Tubing(in) Connecting sucker rod
Rod pumps 31.8

2.1
2.4
2.7

3.0

3.3

3.6

3.9

4.2

4.5

4.8

5.7

6.0

6.6

7.3

9.1

 1.5-6 0.3
0.6
0.9		 2 3/8 CYG16
38.1 2 7/8 CYG19
44.45 2 7/8 CYG19
Tubing
pump		 31.8 1.5-7.8

0.3

0.6

0.9

 2 3/8 CYG16
38.1 2 7/8 CYG16
44.45 2 7/8 CYG16
57.15 2 7/8 CYG19
69.85 2 7/8 3 1/2 CYG22
82.55 3 1/2 CYG25
95.25 3 1/2 CYG25

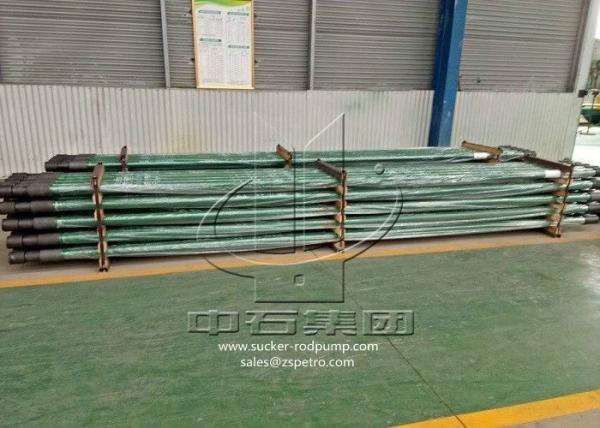

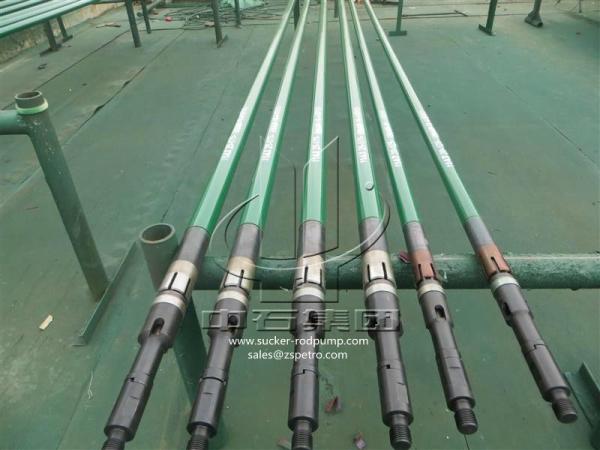

Pictures

Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving

Petroleum Production Well Pump Tubing , Downhole Tubing Pump With Energy Saving
