High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump
High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump
High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump
High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump
High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump
High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump
Specifications
Brand Name :
Zhongshi
Model Number :
TH(B)M
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Machine type :
Petroleum Machinery
Application :
petroleum production
Color :
Required
Type :
Tubing Pump
Certificate :
API 11 ax
Delivery Time: :
Depends on quantity
Description

High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump

Product description

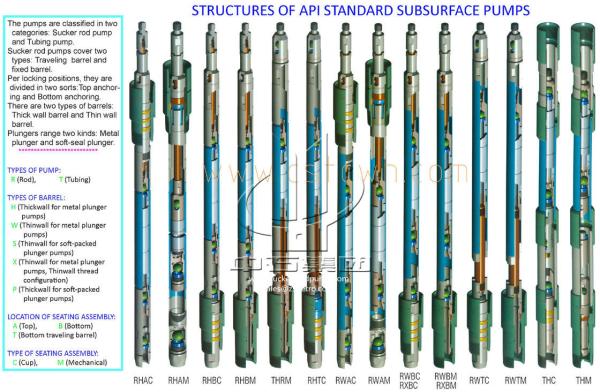

The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.

Technical parameter list

Model mm(in)Nominal Dia. Stroke m m3/d Pump Constant Tubing And Thread In Sucker Rod
20-125TH 32(1.25) 0.6-7.3 1.14 2 3/8NU/EU 3/4
25-125TH 32(1.25) 0.6-7.3 1.14 2 7/8NU/EU 3/4
20-150TH 38(1.50) 0.6-7.3 1.64 2 3/8NU/EU 3/4
25-150TH 38(1.50) 0.6-7.3 1.64 2 7/8NU/EU 3/4
20-175TH 44(1.75) 0.6-7.3 2.24 2 3/8NU/EU 3/4
25-175TH 44(1.75) 0.6-7.3 2.24 2 7/8NU/EU 3/4
25-225TH 57(2.25) 0.6-7.3 3.69 2 7/8NU/EU 3/4
30-275TH 70(2.75) 0.6-7.3 5.50 3 1/2NU/EU 7/8
35-325TH 83(3.25) 0.6-7.3 7.70 4 NU/EU 7/8
40-375TH 95(3.75) 0.6-7.3 10.26 4 1/2NU/EU 1

Pictures

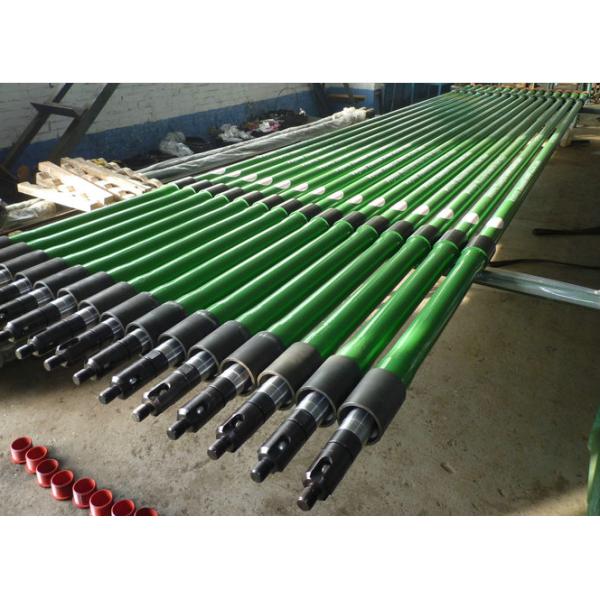

High Performance Well Pump Tubing / Heavy Wall Barrel Succer Rod Pump
