Gas Well Oilfield Tubing Pipe Hot Rolled Technique Wall Thickness 2.87-16mm
Gas Well Oilfield Tubing Pipe Hot Rolled Technique Wall Thickness 2.87-16mm
Specifications
Brand Name :
Zhongshi
Model Number :
1.05"-4 1/2"
Certification :
API 5CT, ISO, QHSE
Place of Origin :
China
MOQ :
1 metric ton
Price :
Negotiable
Payment Terms :
T/T, L/C
Packaging Details :
Be bundled by steel strap
Size OD :
4 1/2”-20"
Wall thickness :
2.87 - 16mm
Section shape :
API 5CT
Technique :
Hot rolled
Alloy or not :
Alloy steel
Place of origin :
China(mainland)
Description

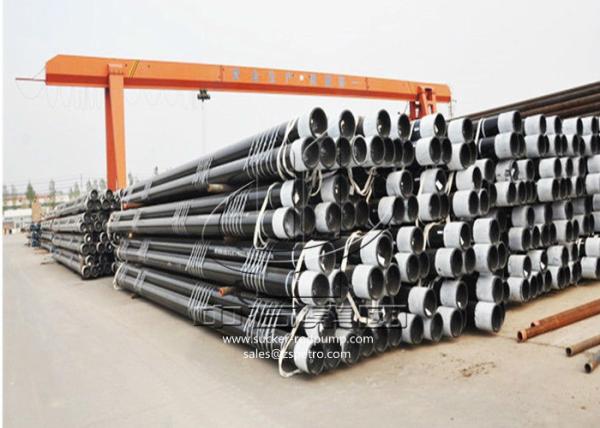

Zhongshi Oil Gas Well Oilfield Tubing Pipe Of Size OD 2 3/8" 2 7/8" API OCTG


Description of oil tubing:

Oil tubing is used to extract petroleum and natural gas from oil & gas well. Oil casing serves as wall of
a well.


Features:

1. Seamless oil pipe
2. Hot-rolling pipe
3. Size OD: 1.05”-4 1/2”


Technical specification:

ProductsCasing, tubing, pup joints, couplings
Size Range(OD):Tubing: 26.67-114.3mm
Casing:114.3-508.0mm
Length range :R1, R2, R3
Standard:API 5CT
Certification:API 5CT, ISO9001, ISO14001,OHSMS18000
Material:H40,M65,J55,K55,N80,L80,L90,C90,T95,P110,Q125
Type of thread:STC,LTC,BTC,NU,EU
Testing:Chemical Component Analysis,
Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation),
Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test)
Hydrostatic Test
X-ray Test



Mechanical properties:

GradeYield StrengthTensile StrenghtHardnessAllowable
MinMaxMinMaxMaxHardness
PsiMpaPsiMpaPsiMpaHRCBHNVariation
J5555,00037980,00055275,000517---
K5555,00037988,00055295,000655---
N8080,000552110,000758100,000689---
N80-180,00055295,00065595,00065523241-
C9090,000621105,000724100,00068925.42553
C9595,000655110,000758105,000724---
T9595,000655110,000758105,00072425.42553
P110110,000758140,000965125,000862---
