Well Drilling Oilfield Cementing Tools , Non-Welded Hinged Cement Basket
Well Drilling Oilfield Cementing Tools , Non-Welded Hinged Cement Basket
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~20"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Price :
Negotiable
Type :
Hinged Welded Type
Material :
Steel
Usage :
Well Drilling
Feature :
Eco-Friendly
Bow number :
10~34
Condition :
Brand New
Description

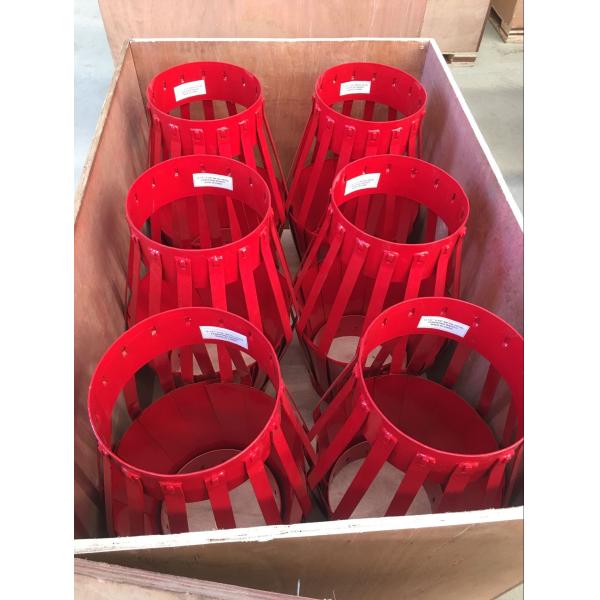

Well Drilling Oilfield Cementing Tools , Non-Welded Hinged Cement Basket

Cementing basket can be installed on a certain part of the casing with upside down by the mounting rings according to the request of cementing.It can hold cement slurry in the annular clearance outside the casing,and prevent cement slurry from going down and leaking to pollute hydrocarbon zone.

Features
  • The cement basket has ability to accommodate much larger than nominal hole sizes.
  • They are available in 4 ½” to 20” sizes and any kind of specific sizes.
  • With this type of design cement basket can be rotated and reciprocated.
  • Welded and non-welded convex shape bows are available.

Specification
Casing Size (in) No. of Bows Total Length Basket O.D Min. Hose Size (in)
in mm
4 1/2 10 24 1/2 12 1/2 317.5 6
5 10 24 1/2 13 342.9 6
5 1/2 12 24 1/2 13 1/2 342.9 7 1/4
6 5/8 12 24 1/2 14 5/8 371.5 8 3/8
7 14 24 1/2 15 381 8 3/8
7 5/8 14 24 1/2 15 5/8 396.9 9 1/2
8 5/8 16 24 1/2 16 5/8 422.3 10 5/8
9 5/8 18 24 1/2 17 5/8 447.7 11 5/8
10 3/4 18 24 1/2 18 3/4 476.3 12 3/4
11 3/4 20 24 1/2 19 3/4 501.7 13 3/4
11 3/8 24 24 1/2 21 3/8 542.9 15 1/2
16 28 24 1/2 24 609.6 18
18 5/8 34 24 1/2 26 5/8 676.3 20 5/8
20 34 24 1/2 28 711.2 22

Well Drilling Oilfield Cementing Tools , Non-Welded Hinged Cement Basket Well Drilling Oilfield Cementing Tools , Non-Welded Hinged Cement Basket
