High Strength Hinged Bolted Stop Collar OEM Service
High Strength Hinged Bolted Stop Collar OEM Service
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~36"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Price :
Negotiable
Type :
Bolt Clamp
Installation :
Latch on
Corlor :
Red or as required
Material :
65Mn,steel 20
Size :
Different Sizes are available
Feature :
Used in deviated wells and horizontal wells
Description

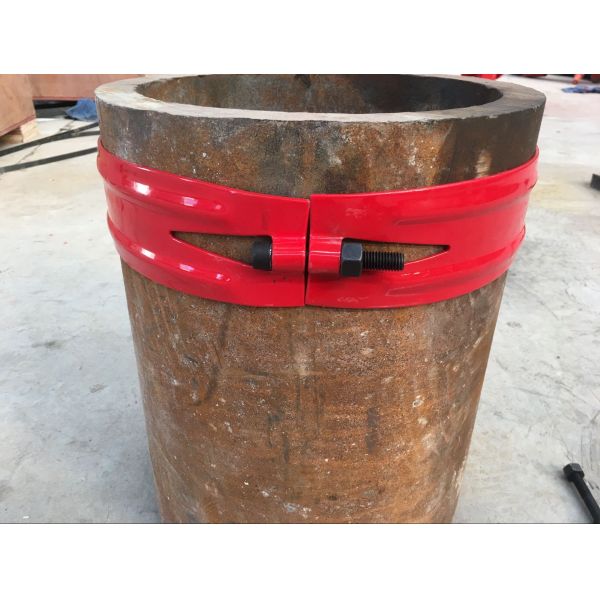

High Strength Hinged Bolted Stop Collar OEM Service

Hinged Bolted Stop Collars secure placement and limits travel on attachments to casing string, which uses a single draw bolt tightening mechanism with "hardened inserts" to grip the casing once tightened, ,which is very quick and easy for installation.

Features
  • Designed to latch on the casing pipe without having to be slipped on at the end of the casing pipe.
  • It can be tightened for a holding force upto 1000 % of the centralizer starting force when it is in locking
  • The locking mechanism is at 180 degrees of the hinge.
  • Different specifications are available
  • Good impact and fatigue capability which is used in high axial loads place.

Specification
Specification (Inch) ID
(mm)		 OD
(mm)		 Holding Force (KN)
13 3/ 8” 338 350 40
10 3/ 4” 272 284 40
9 5/ 8” 245 257 40
8 1/ 8” 206 218 40
7 5/ 8” 193 285 30
7” 177 189 30
5 1/ 2” 139 151 30
5” 126 138 24
4 1/ 2” 114 126 24

High Strength Hinged Bolted Stop Collar OEM Service
