5 1/2 Bow Spring Centralizer Thermal Plastic Spiral Vane Centralizer With Steel Ring
5 1/2 Bow Spring Centralizer Thermal Plastic Spiral Vane Centralizer With Steel Ring
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~36"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Material :
Thermal Plastic
Color :
Black or white
Size :
4 1/2"~36"
Feature :
high-temperature resistance
Blade :
4~12
Manufacture :
Hot-melt
Description

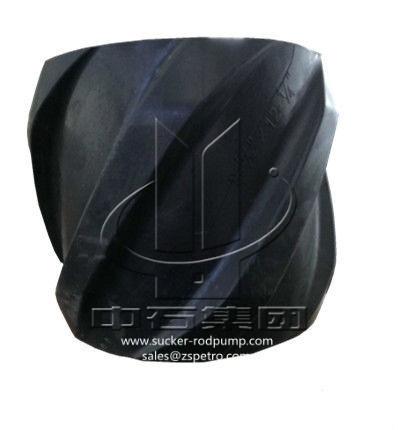

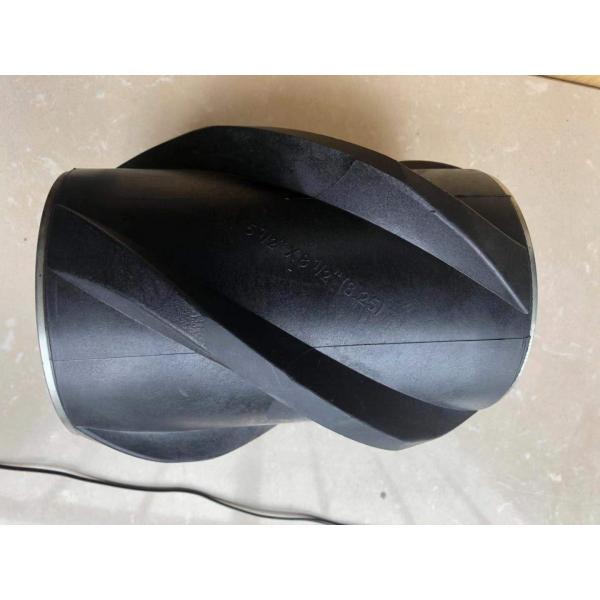

5 1/2” Thermal Plastic Spiral Vane Centralizer With Steel Ring

The composite nylon centralizer is used during running and cementing operations to centralize casing. Made of advanced composite, the one-piece centralizer has a low coefficient of friction, this centralizer withstands high-impact loading and is highly wear resistant.

Features

  • Reducing lower casing resistance phenomenon, making the casing smoothly down to the design position;
  • Making casing centralizer centered within the well;
  • Reducing the sticking phenomenon to make the annular space hydrostatic pressure balanced;
  • Reduce channeling, improve the mud replacement efficiency, thus improve the cementing quality.
Specification
Specification Style Max OD (mm) ID (mm) Length (mm)
4 1/2 x 6 I, II, III 145 116.5 200
5 x 6 I, II, III 145 129 200
5 1/2 x 8 1/2 I, II, III 205-210 142 200/300
6 5/8 x 8 1/2 I, II, III 205/210 171 200/300
7 x 8 1/2 I, II, III 205/210 181 200/300
7 x 9 1/2 I, II, III 225-235 181 200/300
7 x 9 5/8 I, II, III 225-235 181 200/300
9 5/8 x 12 1/4 I, II, III 300-305 248 200
13 3/8 x 17 1/2 I, II, III 430-435 346 200

5 1/2
