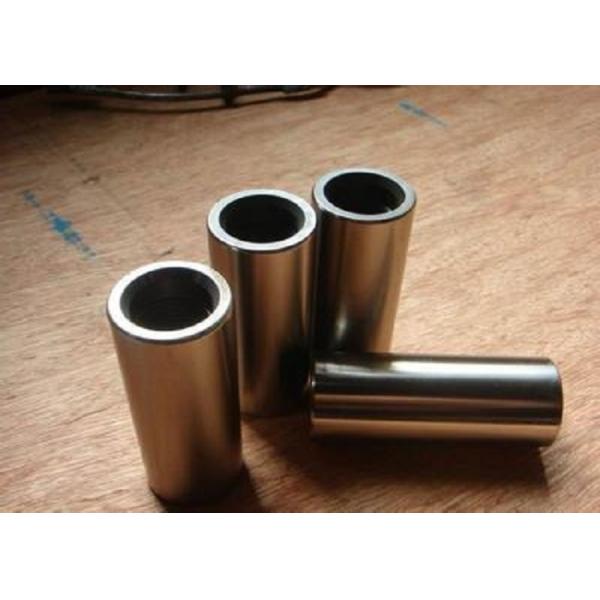

SH Type Grade D 40Cr Material Polished Steel Rod Coupling Corrosion Resistant 25 - 30ft Length
SH Type Grade D 40Cr Material Polished Steel Rod Coupling Corrosion Resistant 25 - 30ft Length
Specifications
Brand Name :
Zhongshi
Model Number :
sucker rod
Certification :
API ,ISO ,QHSE
Place of Origin :
China
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
1000pcs
Delivery Time :
2 weeks
Packaging Details :
exported packing
Type :
Sucker Rod,pony rod
Size :
1 1/8",3/4",1",5/8"-1-1/8"
Grade :
D,KD,HY,K,HL
Material :
alloy steel,AISI 4130
Length :
25-30ft,. or customized
Product name :
Alloy Steel Sucker Rod
Description

API SH Type Grade D 40Cr Material Sucker Rod Subcoupling Corrosion Resistant Feature

Products Description:

Class T and Class SM coupling for sucker rods are manufactured as per API Specification 11B. For the thread cutting, we are using cold form rolled by displacing rather than by removing of material for making the coupling thread. The thread rolling cutting results in a compressive stress at the root of the thread, giving maximum strength to the traditional weak point of cut-thread couplings.

The couplings are available in full size, slim hole and over size.Also, combination couplings are available for different diameters (sub-coupling) for both Class T and Class SM couplings.

Features:

1. The class T coupling is using AISI 5140 to manufacture. The coupling is coated using phosphate chemical treatment or black oxide on customer’s request. For Class SM coupling, the spray metal is a specification hardening process and is applied on the base metal.


2. The couplings are available in full size, slim hole and over size. Also, combination couplings are available for different diameters (sub-coupling) for both Class T and Class SM couplings.


Technical Specifications:

Chemical Properties: Class T Coupling
Steel AISI 5140
C 0.37~0.44
Si 0.17~0.37
Mn 0.50~0.80
P ≤0.040
S ≤0.040

Spray Metal Coating Chemical Properties SM Coupling
Carbon 0.50~1.00
Silicon 3.50~5.50
Phosphorus 0.00~0.02
Sulfur 0.00~0.02
Chromium 12.00~18.00
Boron 2.50~4.50
Iron 3.00~5.50
Cobalt 0.00~0.10
Titanium 0.00~0.05
Aluminum 0.00~0.05
Zirconium 0.00~0.05
Nickel Balance

Mechanical Properties: Class T Coupling
Tensile Strength, PSI: (MPa) 95,000 (655)
Hardness Rockwell A 56/62
