AISI 1045 Steel Sucker Rod Insert Pump For Oilfield
AISI 1045 Steel Sucker Rod Insert Pump For Oilfield
Specifications
Brand Name :
Zhongshi
Model Number :
RWBM
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Product Name :
Cup bottom anchor rod insert pump
Pump type :
Oilfield pump
Application :
Oil production
Anchor type :
Cup bottom
Plunger material :
AISI 1045 steel
Plunger coating :
Spray metal
Barrel type :
Stationary
Manufacturer :
Puyang Zhongshi Group
Description

Puyang Zhongshi Oilfield Sucker Rod Insert Pump AISI 1045 Steel Pump

Cup bottom anchor sucker rod inserted pump description:

The subsurface sucker rod pumps are manufactured in accordance with API 11AX, and have been API monogrammed and ISO 9001 licensed since 2003. Technology was introduced from USA in 1980’ s. More than 40 models and sizes of sucker rod pumps are available with the diameter ranging from 28 mm to 108 mm. Annual production capacity: 150, 000 sets .
Conventional pump types: rod pump, tubing pump and special purpose pump.

Rod inserted pump technical specifications:

Type of Pump

 pump technical parameters

Pump OD specifications

(mm)

Barrel length (m)

Stroke length

(m)

Extension

(m)

tubing thread

rod

Rod Pumps

 Ø31.8

2.1

2.4

2.7

3.0

3.3

3.6

3.9

4.2

4.5

4.8

5.7

6.0

7.3

8.0

9.1

1.5

∣

6

0.3

0.6

0.9

 2-3/8” CYG16

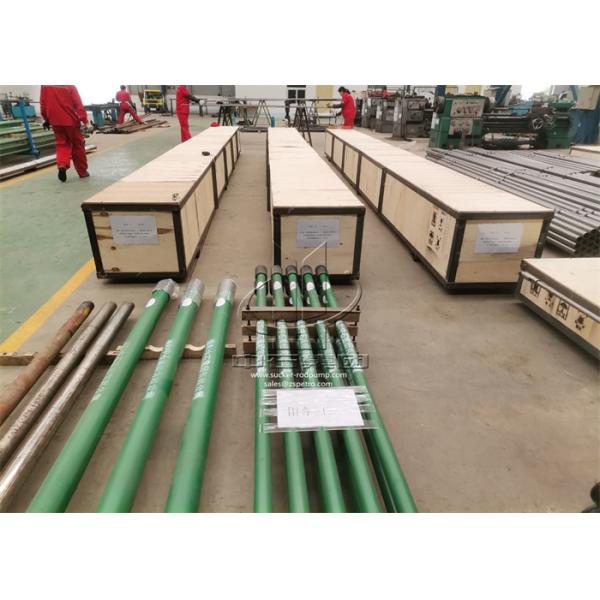

Sucker Rod Pump Pictures

AISI 1045 Steel Sucker Rod Insert Pump For Oilfield
