API 11AX Production Downhole Pumps Petroleum Equipment
API 11AX Production Downhole Pumps Petroleum Equipment
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Barrel structure :
Stationary
Barrel type :
Heavy wall or thin wall
Model :
20-125 to 30-250
Barrel material :
High carbon steel
Barrel coating :
Chrome plating
Plunger length :
0.3-8ft
Description

Petroleum Equipment API 11AX Production Downhole Pumps

API 11AX production downhole pump description

Sucker Rod pump is also known as insert rod pump, it is one type of the conventional sucker rod pumps.

The rod pump is connected to the sucker rod directly, it can be pulled out with sucker rod and does not influence the tubing, so the well inspection and workover is more convenient. It can save half times and reduce cost of the pumping test, thus the rod pump is suitable for the deeper well.

Puyang Zhongshi began to manufacture rod pump in the 1960s and we are the main insert and rod pump supplier in China. Our rod pump is strictly conforming to API SPEC 11AX (or GB18607) standard.

Depending on the wall thickness of the barrel, the rod pump can be classified as either a thin wall rod pump or a thick wall rod pump.

The Rod Pump, Stationary Thin Wall Barrel is generally suitable for shallow well. Due to the small OD of the barrel, a larger-sized rod pump can be run in an oil well with a small-sized tubing to increase production.

Downhole pump parts table:

API Parts code Parts description Tubing Size & Pump Size
2 3/8x1 1/4 2 3/8x1 1/2 2 7/8x2 3 1/2x2 1/2
Complete Pump Designation
20-125 20-150 25-200 30-250
B21 Bushing, Valve Rod B21-20 B21-20 B21-25 B21-30
R11 Rod, Valve R11-20 R11-20 R11-25 R11-30
C12 Cage, Top Plunger C12-125 C12-150-20 C12-200 C12-250
P21 Plunger, One Piece P21-125 P21-150 P21-200 P21-250
C13 Cage, Closed, Pin Plunger C13-125 C13-150 C13-200 C13-250
V11 Traveling Valve V11-125 V11-150 V11-200 V11-250
P12 Plug Seat P12-125 P12-150 P12-200 P12-250
G11 Guide, Valve Rod G11-20 G11-20 G11-25 G11-30
S21 Seating Assembly, Mechanical Top Lock S21-20 S21-25 S21-25 S21-30
B11 Barrel, Thin Wall B11-125 B11-150 B11-200 B11-250
C14 Cage, Closed Barrel

C14-20-

125

 C14-20 C14-25 C14-30
V11 Standing Valve V11-175 V11-175 V11-225 V11-250
B22 Bushing, Seat, Barrel Cage B22-20 B22-20 B22-25 B22-30
N14 Nipple, Seating, Mechanical Top Lock N14-20 N14-25 N14-25 N14-30

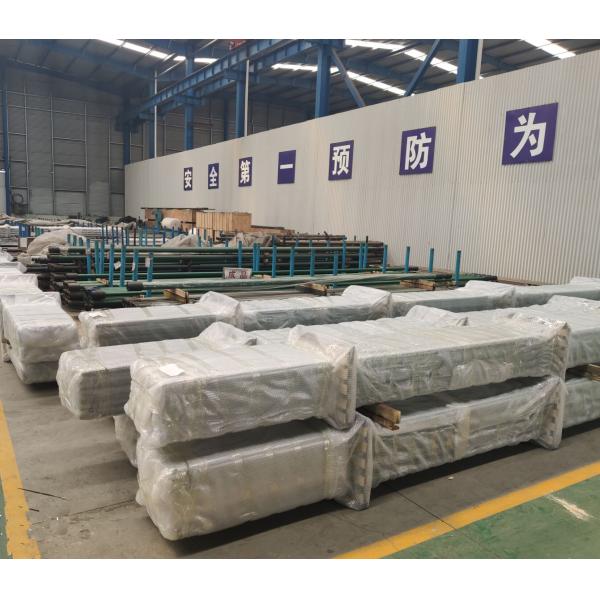

Delivery photo:

API 11AX Production Downhole Pumps Petroleum Equipment
