Top Anchored Stationary Barrel Downhole Pumps For Sandy Wells
Top Anchored Stationary Barrel Downhole Pumps For Sandy Wells
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Another name :
Downhole pump
Seating location :
Top anchored
Anchor type 1 :
Cup anchor
Anchor type 2 :
Mechanical anchor
Plunger type :
Plain or with sandy slotting
Plunger end :
Pin end
Description

Top Anchored Stationary Barrel Downhole Pumps For Sandy Wells

Top anchored downhole Pump description:

A downhole Sucker Rod Pump is used on onshore sites to create a mechanical lifting motion. This motion is created by a series of valves, plungers, rod strings and rods that are assembled together as a pumping system.

There are two different barrels and plungers in series connection pump. According to the theory of hydraulic feedback, during the
down stroke, a downward force is formed to overcome the friction between the viscous crude and the sucker rod, thus improving the
load condition on the sucker rod and decreasing and eliminating the disconnection and break of
the sucker rod. The pump applies to the wells of oil viscosity less than 4,000mPa*s(50℃),the wells with thin oil and the viscous
oil wells without thermal recovery conditions.

API RH series technical parameter table:

RH Model Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
15-106RHBC Ø26.99 1.9"
20-125RHAC Ø31.75 2.1-10 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
20-125RHBC
25-150RHAC Ø38.10 2-7/8”
25-150RHBC Ø38.10
25-175RHAC Ø44.45
25-175RHBC
30-225RHBC Ø57.15 3-1/2"
30-225RHAC

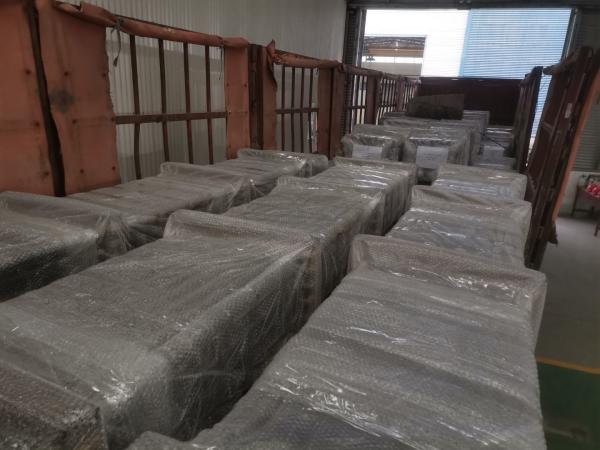

Delivery loading for downhole pump photo:

Top Anchored Stationary Barrel Downhole Pumps For Sandy Wells
