PDC Oilfield Cementing Tools Self Locking Wiper Rubber Bottom Plug
PDC Oilfield Cementing Tools Self Locking Wiper Rubber Bottom Plug
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~20"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Product :
Cementing Plug
Thread :
API or as required
Feature :
PDC drillable
Industry :
Energy & Mining
Temperature :
-30℃ to 150℃
Use :
Oil Drilling Rigs, Well drilling
Description

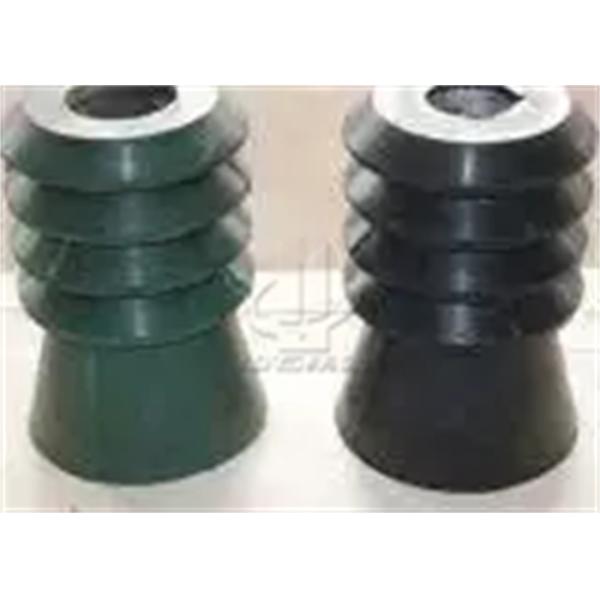

PDC Self-Locking Wiper Rubber Bottom Plug Oilfield Cementing Plug

These series of cementing plug have reinforced locking teeth built into the plugs, which lock together between the plugs and the float equipment to eliminate rotation of the plug during drill out.There are two types of Cementing Plugs used in the cementing process: Bottom Cementing Plug and Top Cementing Plug.

PDC Drillable Top And Bottom Cementing Plug Drilling Casing Features

  • The Top Cementing Plug has a solid body that provides positive indication of contact with the landing collar and bottom plug through an increase in pump pressure.
  • The Bottom Cementing Plug is launched ahead of the cement slurry to minimize contamination by fluids inside the casing prior to cementing. Available in standard and non-rotating types.

PDC Drillable Top And Bottom Cementing Plug Drilling Casing Specification

Casing size

(in)

 casing weight range Wiper Fin O.D
mm in mm in
4 1/2" 14.14-17.26 9.50-11.60 110 4.331
5" 17.11-35.86 11.50-24.10 122 4.803
5 1/2" 20.83-39.88 14.00-26.80 135 5.315
7" 25.30-56.55 17.00-38.00 170 6.693
7 5/8 35.72-63.69 24.00-42.00 185 7.283
9 5/8
9 5/8" 53.57-79.62 36.00-53.50 235 9.252
10 3/4" 60.27-97.77 40.50-65.70 260 10.236
13 3/8" 71.43-107.15 48.00-72.00 333 13.11
20" 139.89-197.93 94.00-133.00 498 19.606

PDC Oilfield Cementing Tools Self Locking Wiper Rubber Bottom Plug
