API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
API sucker rod pump plungers( oil pump plungers) Manufacturer China
Specifications
Brand Name :
puyangzhongshi
Model Number :
ZS
Certification :
API
Place of Origin :
China
MOQ :
50
Price :
USD 500
Payment Terms :
T/T, L/C
Delivery Time :
15-30 DAYS
Packaging Details :
According to customer's requirement
Type :
Sucker Rod,Rod Pump
Material :
Carbon Steel
Machine type :
pump
Use :
oil field
Application :
Oil
Standard :
API
Usage :
oil field
Product name :
sucker rod pump
Description

Fuel Injection Pump Plunger Sucker Rod Pump Fitting

1. Description

Surface of the plunger is coated with nickel alloy and inside wall of the barrel is coated with hardness chrome. all the main parts of valve case, ball and seat are made of strong corrosion-resisting and excellent mechanical properties material.

2. Characteristics

1. API Spec. 11 AX

2. Chrome plated barrel

3. Nickle sprayed plunger

4. Material: 1045#steel

5. Technology: Chrome plated, spray metal coated

3. Technical Data

Mode Technical parameter
Dia (mm) Length(m) Coating Coating thickness(mm)

Short plunger

 Ø27

0.9-1.2

spray welding

chromeplate

0.152-0.305
Ø31.75
Ø38.10
Ø44.45
Ø50.80
Ø57.15
Ø63.50
Ø69.85
Ø95.25

Long plunger

 Ø31.75

within-9.1m

spray welding

0.152-0.305

API sucker rod pump plungers( oil pump plungers) Manufacturer China

Our Services

We offer you pre-sale services, after-sale services which including sales

guidance, information supply & technical support, technical drawing supply,

production planning provide, production schedule provide, inspection support

and certificate provide.

API sucker rod pump plungers( oil pump plungers) Manufacturer China

Company Information

Puyang Zhongshi Group co., Ltd. was founded in 1996, which is the restructured enterprise

of Central Plains oilfield branch company of SINOPEC . The company registered capital is

60.83 million yuan, with annual output value 200 million yuan, 580 employees, including

more than 160 technical and administrative staff . Oil machinery is our main products, the

leading products include pumping unit, subsurface sucker rod pump, wellhead (Christmas

Tree), pressure vessels, drilling solid control series products and cementing accessories. We

had attained ISO 9001 in 1998 and API Certificates in 2002 .

API sucker rod pump plungers( oil pump plungers) Manufacturer ChinaAPI sucker rod pump plungers( oil pump plungers) Manufacturer China

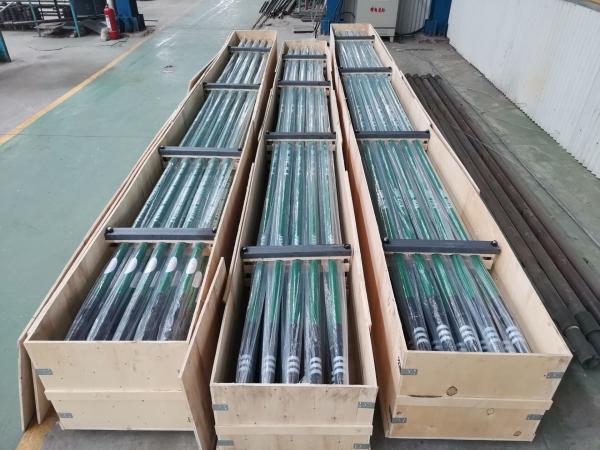

Packaging & Shipping

API sucker rod pump plungers( oil pump plungers) Manufacturer ChinaAPI sucker rod pump plungers( oil pump plungers) Manufacturer ChinaAPI sucker rod pump plungers( oil pump plungers) Manufacturer China
