Oil Rod Insert Pump Top And Bottom Seating With plunger
Oil Rod Insert Pump Top And Bottom Seating With plunger
Specifications
Brand Name :
Zhongshi
Model Number :
RWBM
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Plunger :
With plunger
Seating location 1 :
Top
Seating location 2 :
Bottom
Anchor type :
Cup or mechanical
Pump type 1 :
Sucker rod pump
Pump type 2 :
Tubing pump
Barrel configuration :
Stationary
Groove on plunger :
As customers' request
Description

Top Seating And Bottom Seating Oil Rod Inserted Pump

Top seating and bottom seating rod inserted pump description:

Sucker rod pump and tubing pump both are also called inserted pumps

API inserted pump models:

API-RHAC, Rod, Stationary Heavy Wall Barrel, Cup Top Anchor Pump
API-RHBM, Rod, Stationary Heavy Wall Barrel, Mechanical Bottom Anchor Pump
API-RHBC, Rod, Stationary Heavy Wall Barrel, Cup Bottom Anchor Pump
API-RWAM, Rod, Stationary Thin Wall Barrel, Mechanical Top Anchor Pump
API-RWAC, Rod, Stationary Thin Wall Barrel, Cup Top Anchor Pump
API-RWBM, Rod, Stationary Thin Wall Barrel, Mechanical Bottom Anchor Pump

API-TH(B)M,Tubing ,Heavy Wall Barrel ,Mechanical Anchor Pump
API-TH(B)C,Tubing ,Heavy Wall Barrel ,Cup Type Anchor Pump

Main parts process and material:

Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

Rod inserted pump technical specifications:

Pump type

 Basic API technical parameters

OD of pump

(mm)

Barrel length (m)

Stroke length

(m)

Extension

(m)

tubing thread

rod size

Rod Pumps

 Ø31.8

2.1

2.4

2.7

3.0

3.3

3.6

3.9

4.2

4.5

4.8

5.7

6.0

7.3

8.0

9.1

1.5

∣

6

0.3

0.6

0.9

 2-3/8” CYG16

Features:

1. high pumping efficiency, large displacement

2. wear and corrosion resistance

3. long operation and easy repairing

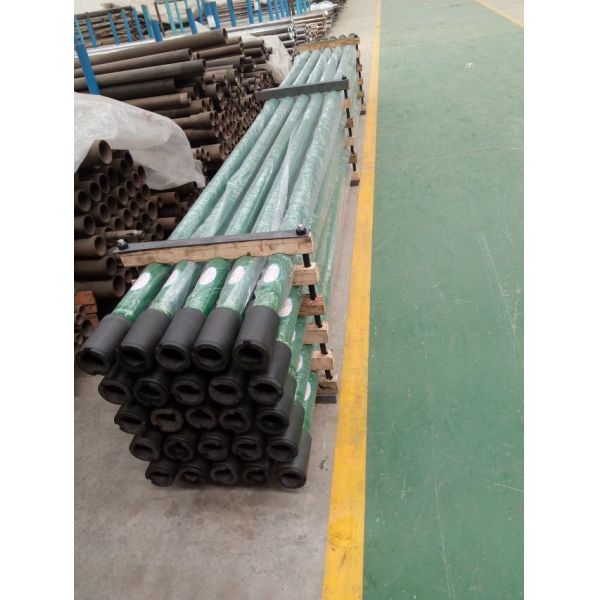

Tubing rod inserted pump Packing photo:

Oil Rod Insert Pump Top And Bottom Seating With plunger
