Surface Hardened Technology Barrel Downhole Rod Pump Oil And Gas
Surface Hardened Technology Barrel Downhole Rod Pump Oil And Gas
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Barrel technology :
Surface hardended
Barrel type :
Heavy wall or thin wall
Barrel material :
High carbon steel
Another name :
Downhole pump
Anchor type :
Mechanical or cup
Warranty :
One year
Description

Surface Hardened Technology Barrel Downhole Pumps

Surface hardened technology barrel downhole pump Description:

The pump barrel assembly directly fixed on a tubing string. The plunger assembly connected on the sucker rod string ,and with the up and down reciprocating motion, so as to realize the production process. Its advantage lies in: in the process of oil production, when the traveling valve and fixed valve side problem,valve side can be proposed by the sucker rod, piston and extractor , don’t put the whole pump and tubing string out of the well, reduce the work intensity and the operation cost

Sucker rod pump has RHAC, RHBM, RHBC, RWAM, RWAC, RWBM; Tubing pump has THBM and THBC

Rod pump should be installed inside the tubing with the sucker rod. It is not necessary to pull the tubing out of the well when checking the pump, which can make the operation easier and quicker

RW pump technical table:

RW Model Pump OD (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
30-250RWAM Ø63.5 2.1-10 0.3-8.0 1.2-9.0 / 3-1/2”
30-250RWBM
30-250RWAC Ø63.5 3-1/2"
30-250RWBC

Downhole pump features:

1. Surface hardened technology barrel

2. Stationary barrel or travelling barrel

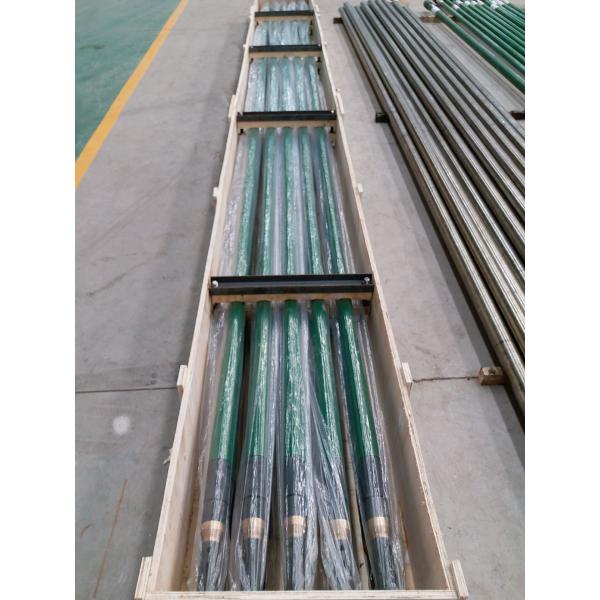

Downhole pumps export packing:

Surface Hardened Technology Barrel Downhole Rod Pump Oil And Gas
