Oilfield Casing Float Equipment 4 1/2'' - 20
Oilfield Casing Float Equipment 4 1/2'' - 20
Specifications
Brand Name :
Puyang Zhongshi Group
Model Number :
4 1/2"~36"
Certification :
API,ISO,QHSE
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, MoneyGram
Delivery Time :
depends on quantity
Packaging Details :
Wooden Box
Product :
Oilfield Casing Float Equipment
Size :
4 1/2''--20"
Infill :
Aluminum alloy or cement
Material :
P-110, K55, J55, N80,L80
Valve :
Single/Double Valve
Application :
Oilfield Cementing Equipment
Description

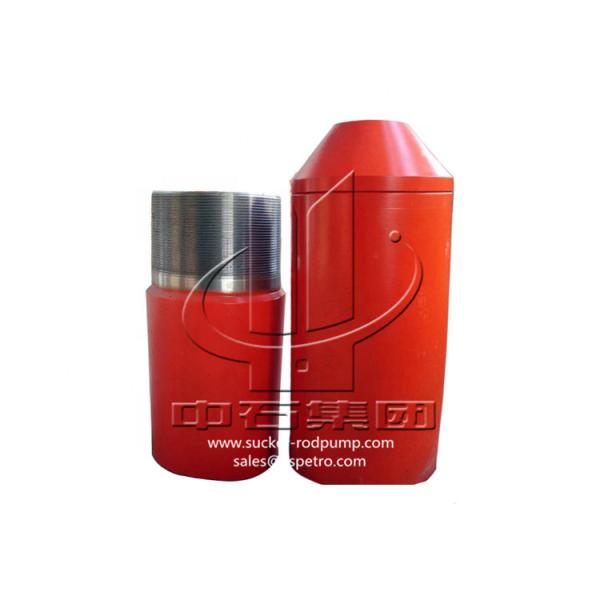

Oilfield Casing Float Equipment

Oilfield Casing Float Equipment is tested and rated in compliance with API requires specs.The material used in the valves is High polymer plastic and valve is consisting of Natural rubber coated on phenolic substance.

Oilfield Casing Float Equipment Features
  • This non metallic valve encased and held in place with the high pressure cement mixture.
  • The design and manufacturing process of valve allow for maximum circulation rates
  • All our Float Equipments are PDC drillable

Oilfield Casing Float Equipment Specification
Specification(in) O.D.(mm) Total length(mm) I.D. (mm) Min.Dia. (mm) Conn Type Affordable strength of back-pressure(Mpa)
Float Collar 5 141.3 500 110 50 5 BCSG 35
5 1/2 153.67 530 112 55 5 1/2BCSG 35
7 194.46 586 162.5 77 7 BCSG 35
9 5/8 270 720 225 77 9 5/8 BCSG 35
13 3/8 365 720 319 77 133/8 BCSG 35
20 533.4 720 475 77 20 BCSG 35
Float Shoe 5 140.3 495 110 50 5 BCSG 35
5 1/2 153.67 514 122 55 5 1/2 BCSG 35
7 194.46 533 162.5 77 7 BCSG 35
9 5/8 269.88 550 225 77 9 5/8 BCSG 35
13 3/8 339.7 550 319 77 133/8 BCSG 35
20 534 652 475 77 20 BCSG 35
