Viscosity Oil Producing THC And THM Tubing Pump Heavy Wall
Viscosity Oil Producing THC And THM Tubing Pump Heavy Wall
Specifications
Brand Name :
Zhongshi
Model Number :
Tubing pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Model 1 :
THC
Model 2 :
THM
Barrel type :
Heavy wall
Barrel material :
Carbon steel in usual
Barrel coating :
Chrome plated or nickel carbide
Plunger material :
AISI 1045 steel
Description

Viscosity Oil Producing THC And THM Tubing Pump

Viscosity Oil Producing Tubing pump description:

API-TH,Tubingl, Heavy Wall Barrel, Tubing Pump

Tubing pump is a kind of heavy-walled downhole pump. The pump barrel assembly of the tubing pump connected on the tubing string,and with its down to the bottom of the well.Plunger assembly connected on the sucker rod string and with it down to the pump barrel position in the well,then with it do up and down reciprocating motion, so as to realize the production process.
The raw material of API 11AX tubing pump parts should be inspected after heat treatment, the mechanical properties, chemical compositions and metallographic structures must be inspected by batch. The API 11AX tubing pump parts should be inspected several times during the processing procedure.

Features

1. Heavy walled barrel
2. Strongest oil production pump, durable than sucker rod pump
3. Suitable for viscosity oil producing.

API parts code for process and material:

Pump barrel: plain carbon steel plating (A1), ordinary carbon steel carbonitriding (B1), ordinary carbon steel carburizing (B2), low alloy steel nitride (B5).
Plunger: 1045 steel spraying (B1), 1045 steel spraying (B2), 1045 steel chrome plating (A1), 1045 steel double chrome plating (A2).
Valve ball and seat: stainless steel (A1), cobalt chromium (B2), tungsten carbide (C1), nickel and carbon compounds (C2), titanium carbide (C3).
Other accessories: plain carbon steel, low alloy steel, stainless steel, brass and other materials.

Technical specifications:

Model pump OD(in) Barrel length(ft) Plunger length(ft) stroke length(ft)

Tubing size

EUE(in)
20-175THM Ø44.45 7-34 1-26 4-29 2 3/8"
25-225THM Ø57.15 2 7/8"
30-275THM Ø69.85 3 1/2"
40-375THM Ø95.25 4 1/2"

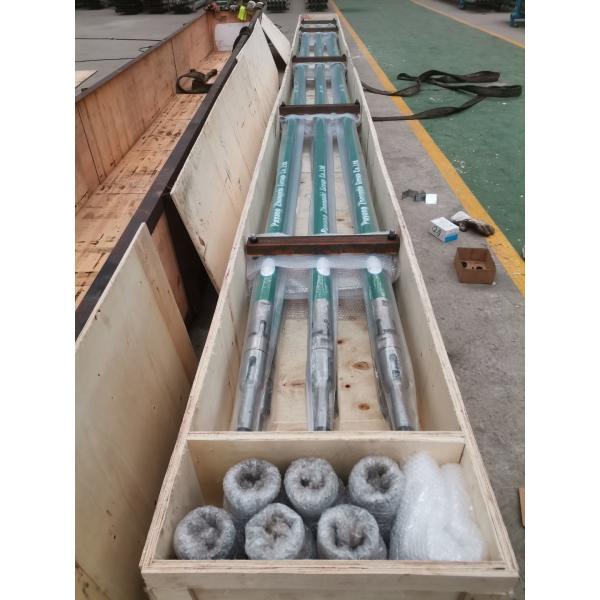

Pump photo:

Viscosity Oil Producing THC And THM Tubing Pump Heavy Wall
