THM Well Tubing Pump With Steel Stellite Insert Cages
THM Well Tubing Pump With Steel Stellite Insert Cages
Specifications
Brand Name :
Zhongshi
Model Number :
TH(B)M
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Model :
THM
Type :
Tubing pump
Application :
Crude oil pumping
Cage coating :
Stellite
Barrel coating :
Chrome plated
Barrel material :
Carbon steel
Description

THM Well Tubing Pump With Steel Stellite Insert Cages

THM type tubing pump description

Subsurface sucker tubing pump is applied to pumping crude oil from oil well with pumping unit and sucker rod. Through sucker rod,tubing pump is descent to certain depth of oil. When pumping unit drives sucker rod to move up and down, sucker rod drives plunger of subsurface sucker rod pump move up and down in tubing barrel and pump crude to surface.

Pump barrel, plunger and accessories are specially treated which have the advantages of abrasive and corrosion resistance. It is suitable for pumping oil from oil well which contains sand, wax, gas and water.

THM is the mechanical type anchor.

THM Tubing Pump Parts List

API code Description for parts Quantity in one pump
B13 Barrel, Heavy wall 1
C11 Cage, Top open 1
C13 Cage, Closed plunger 1
C16 Cage, Standing 1
C34 Coupling, Tubing 2
C35 Coupling, Barrel 2
N13 Nipple, Seating, Cup type 1
N21 Nipple, Extension, Upper 1
N22 Nipple, Extension, Lower 1
P21 Plunger, One piece 1
P31 Puller, Standing valve 1
S22-20-1 mandrel
1
S22-20-2 brass sleeve
1
S22-20-3 lock 1
V11 Traveling and standing valve 3

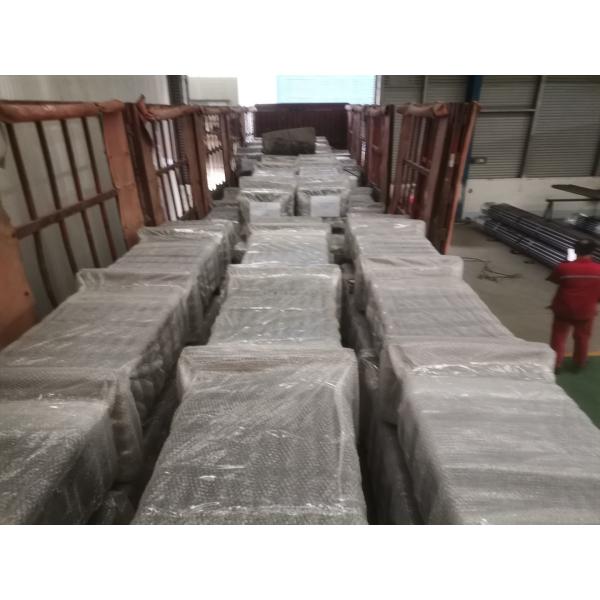

Delivery photos

THM Well Tubing Pump With Steel Stellite Insert Cages
