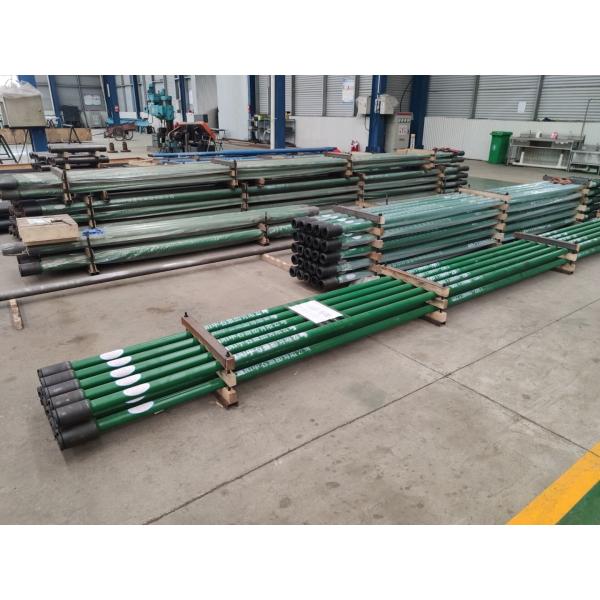

RHT Model Traveling Barrel Type Sucker Rod Pumps with heavy wall
RHT Model Traveling Barrel Type Sucker Rod Pumps with heavy wall
Specifications
Brand Name :
Zhongshi
Model Number :
Sucker rod pump
Certification :
API, ISO, QHSE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, D/A
Supply Ability :
1000 SETS/MONTH
Delivery Time :
10~15 workdays
Packaging Details :
Standard exported packing
Model :
RHTM, RHTC
Barrel type :
Thin wall pump or heavy wall pumps
Barrel material :
Carbon steel
Plunger material :
Carbon steel
Standard :
API 11AX
Description

RHT Model Traveling Barrel Type Sucker Rod Pumps

RHT model traveling barrel sucker rod pump description

RHT model traveling barrel pump is another kind of sucker rod pump.It's different from the stationary barrel pump.

Allowable setting depth

In the early 1990s, an industry task group analyzed the stresses that react on a downhole rod pump. This was required to determine if there were recommended allowable loads that could be subjected to rod pumps of different types, sizes, and metallurgy. This group developed the burst, collapse, and axial-loading equations to determine these limits and the associated maximum recommended setting depth for sucker-rod lift pumps, [4] published in API RP 11AR.[1] The depth limitation and stresses on the downhole pump barrel and components should be considered when selecting the size, type, and metallurgy for a downhole pump.

RHT traveling barrel pump specifications:

Specification Pump diameter (in) Barrel length (ft) Plunger length (ft) Stroke length (ft) Extension length (ft) Tubing size EUE(in)
20(25)-125RHTC Ø26.99 1.9"
20(25)-125RHTM Ø31.75 2.1-10 0.3-8.0 1.2-9.0 0.3-0.9 2-3/8”
25-150RHTC
25-150RHTM Ø38.10 2-7/8”
25-175RHTC Ø38.10
25-175RHTM Ø44.45
30-225RHTC
30-225RHTM Ø57.15 3-1/2"

Features


1. Traveling barrel type
2. Structure is different from the stationary barrel pump.
