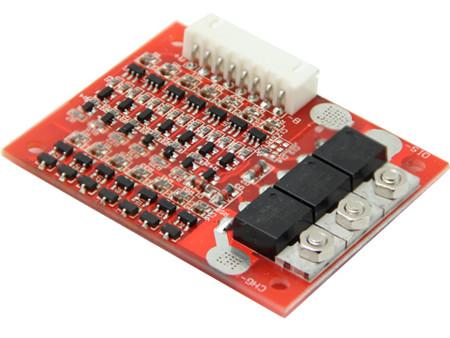

5S10A Battery Management System (BMS) For 16V LiFePO4 Battery Packs
5S10A Battery Management System (BMS) For 16V LiFePO4 Battery Packs
Specifications
Brand Name :
BEST
Model Number :
BEST-D110
Certification :
CE
Place of Origin :
SHENZHEN
MOQ :
1000PCS
Payment Terms :
TT IN ADVANCE
Supply Ability :
10000PCS/DAY
Delivery Time :
7 DAYS AFTER RECEIVE PAYMENT
Packaging Details :
EXPORT WOODEN BOX
Description

Features and Benefits

1.Protection Circuit Module for 16V 5S LiFePO4 battery pack;
2.PCM/PCB applies for 5 cells LiFePO4 battery pack;
3.To prevent the battery packs from overcharge,overdischarge,over current, over temperature ,short circuit ;
4.With cell balance/equilibrium function;
5.Compatible with all the LiFePO4 cells;
6.How balancing function works? after battery pack is fully charged. PCM will detect each cell's voltage and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have longer service life.

Specifications

Item Contents Criteria
1 Model BEST-D110 5S-10A working current
2 Voltage Charging voltage 18V
3 Current Maximal continuous charging current 5A
Maximal continuous discharging current 10A
Current consumption ≤20μA
4 Overcharge Protection Over charge detection voltage 3.6V~3.9V(Adjustable)
Over charge detection delay time 0.5S~2S
Over charge release voltage 3.5V~3.8V(Adjustable)
5 Over Discharge Protection Over discharge detection voltage 2.0V~2.5V(Adjustable)
Over discharge detection delay time 50~200mS
Over discharge release voltage 2.0V~2.5V(Adjustable)
6 Over Current Protection Over current detection voltage 0.1V~0.2V(Adjustable)
Over current detection current adjustable
Detection delay time 5~20mS
Release condition Cut load,automatically recover
7 Short Circuit Protection Detection condition Exterior shot circuit
Detection delay time 200~500uS
Release condition Cut load,automatically recover
8 Balance/Equilibrium Balance voltage for single cell 3.60V±0.025V
Balance current for single cell 36mA±5mA
9 Resistance Inner resistance ≤20mΩ
10 Temperature Operating temperature range -40~+85°C
Storage temperature range -20~ +125°C
11 Size (L*W*T) 56mm * 46mm * 7.5mm
